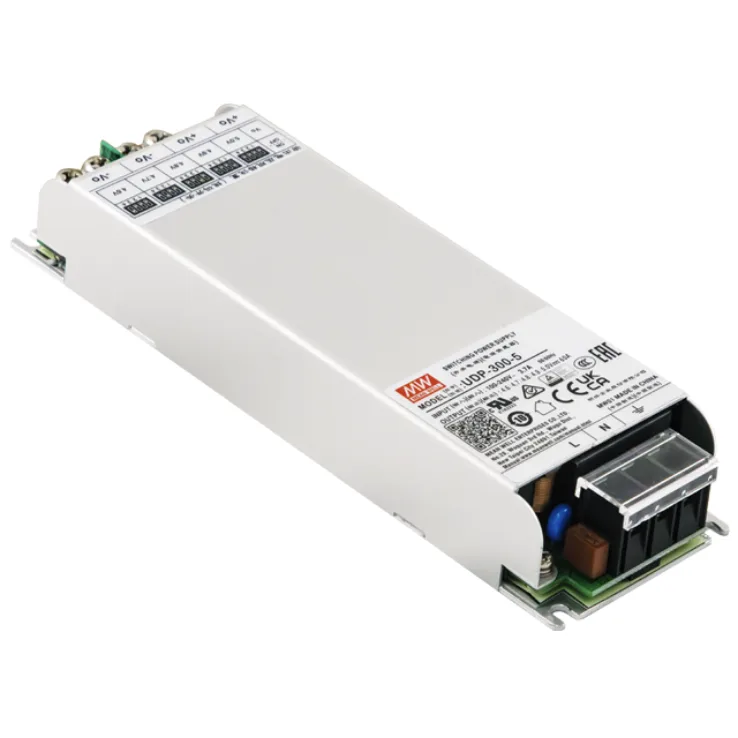

UDP-300 Enclosed Power Supplies 252–300W

UDP-300 Features:

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

Low profile: 26mm

High efficiency up to 92%

Built-in active PFC function

Fanless design, cooling by free air convection

Protections: Short circuit / Overload / Over voltage / Over temperature

Output voltage adjustable: DIP switch

Redundant function (R Type)

Operating altitude up to 5000 meters (Note 9)

Conformal coating

LED indicator for power on

3 years warranty

Spec	UDP-300-4.2	UDP-300-4.6	UDP-300-5
Wattage	252	276	300
Input Voltage	90 ~ 264VAC	90 ~ 264VAC	90 ~ 264VAC
Output Current	60	60	60
Output Voltage	4.2	4.6	5
Dimensions	165x50x26	165x50x26	165x50x26
Working Temperature	-40 ~ +70℃
Safety Standards	UL 62368-1, BS EN/EN62368-1,GB 4943.1, EAC TP TC 004 approved
EMC Standards	BS EN/EN55032 (CISPR32), GB/T 9254.1, BS EN/EN61000-3-2 (IEC61000-3-2), GB17625.1, BS EN/EN61000-3-3 (IEC61000-3-3), BS EN/EN55035 (CISPR35), and BS EN/EN61000-4-2, -4-3, -4-4, -4-5, -4-6, -4-8 and -4-11.
