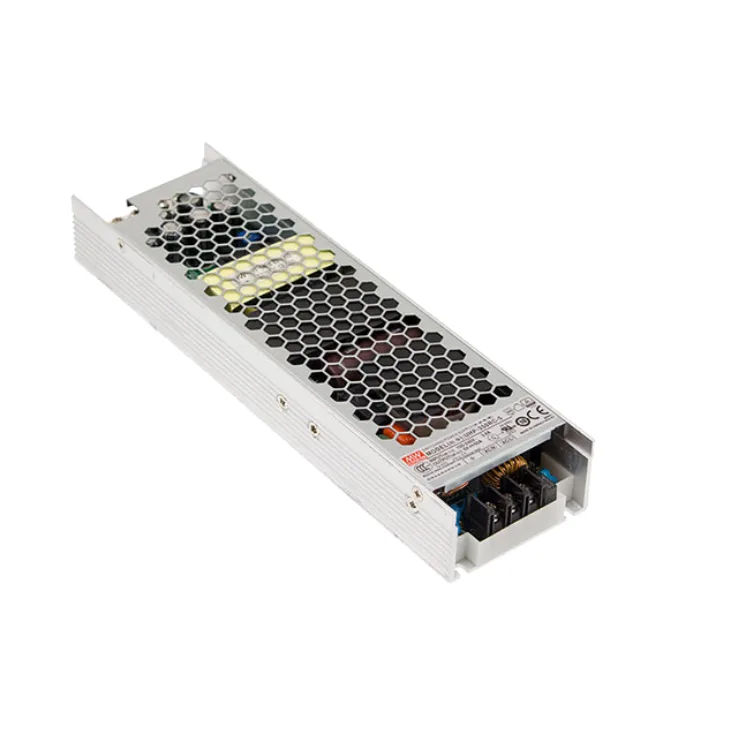

UHP-350 Series Enclosed Power Supplies 198–351W

Models:	UHP-350-3.3 UHP-350-4.2 UHP-350-5 UHP-350-12 UHP-350-15 UHP-350-24 UHP-350-36 UHP-350-48 UHP-350R-3.3 UHP-350R-4.2 UHP-350R-5 UHP-350R-12 UHP-350R-15 UHP-350R-24 UHP-350R-36 UHP-350R-48 UHP-350-55
Manufacturer:	MEAN WELL
Type:	Enclosed Power Supplies

UHP-350 Series Features:

Slim and Low profile (26mm)

Fanless design, 200W convection

Protections:Short circuit / Overload/ Over voltage/ Over Temperature

Other features:

Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
150% peak load capability (100ms)
-30-+70°C working temperature
Operating altitude up to 5000 meter
LED Indicator for power on
3 years warranty

Spec	UHP-350-3.3	UHP-350-4.2	UHP-350-5	UHP-350-12	UHP-350-15	UHP-350-24	UHP-350-36	UHP-350-48	UHP-350R-3.3	UHP-350R-4.2	UHP-350R-5	UHP-350R-12	UHP-350R-15	UHP-350R-24	UHP-350R-36	UHP-350R-48	UHP-350-55
Wattage	198	252	300	350.4	351	350.4	351	350.4	198	252	300	350.4	351	350.4	351	350.4	350
Input Voltage	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90-264VAC 127-370VDC	90 ~ 264VAC 127 ~ 370VDC
Output Current	60A	60A	60A	29.2A	23.4A	14.6A	9.75A	7.3A	60A	60A	60A	29.2A	23.4A	14.6A	9.75A	7.3A	6.3A
Output Voltage	3.3	4.2	5	12	15	24	36	48	3.3	4.2	5	12	15	24	36	48	55
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	3.2-3.5V	3.6-4.4V	4.5-5.5V	11.4-12.6V	14.3-15.8V	22.8-25.2V	34.2-37.8V	45.6-50.4V	3.2-3.5V	3.6-4.4V	4.5-5.5V	11.4-12.6V	14.3-15.8V	22.8-25.2V	34.2-37.8V	45.6-50.4V
Dimensions	220x 62x 31	220x 62x 31	220x 62x 31	220x 62x 31	220x 62x 31	220x 62x 31	220x 62x 31	220x 62x 31	220x 62x 31	220x 62x 31	220x 62x 31	220x 62x 31	220x 62x 31	220x 62x 31	220x 62x 31	220x 62x 31	2206231mm (LWH)
Working Temperature	-30 - +70°C	-30 ~ +70℃(Refer to “Derating Curve")
Safety Standards	UL60950-1, TUV EN60950-1, EN60335-1, CCC GB4943 approved	UL 62368-1,TUV BS EN/EN62368-1,BS EN/EN60335-1(Except for 55V),BS EN/EN61558-1, BS EN/EN61558-2-16,GB 4943.1,BSMI CNS15598-1,EAC TP TC 004,BIS IS13252(Part1)/IEC60950-1 (except for 4.2V/15V/48V/55V) approved,Design refer to AS/NZS 61558.1/2.16,AS/NZS 62368.1
EMC Standards	Compliance to EN55032, GB9254, Class B, EN55014, EN61000-3-2, - 3 Compliance to EN61000-4-2,3,4,5,6,8,11; EN61000-6-2 (EN50082-2), heavy industry level, criteria A	Compliance to BS EN/EN55032,GB17625.1,GB/T 9254.1,Class B, BS EN/EN55014,BS EN/EN61000-3-2,-3, BSMI CNS15936, EAC TP TC 020, Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2),BS EN/EN55035, heavy industry level ,EAC TP TC 020
