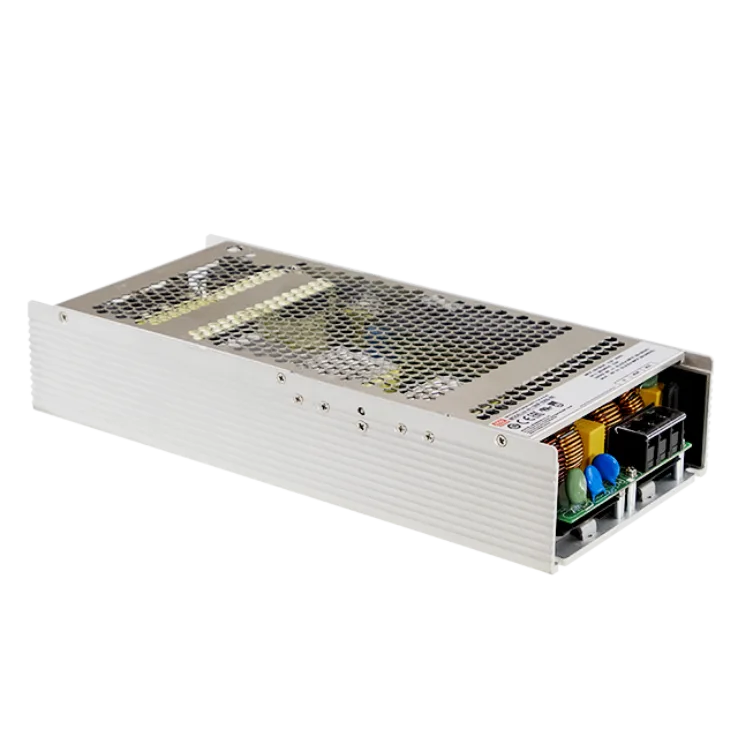

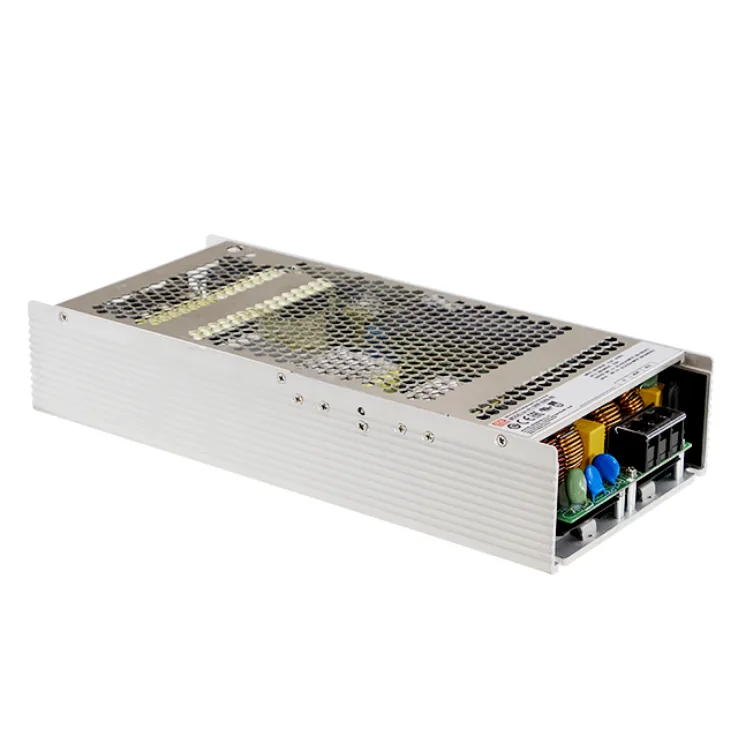

UHP-2500 Series Enclosed Power Supplies 2500W

Download Datasheet
Models:
  • UHP-2500-24
  • UHP-2500-36
  • UHP-2500-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

UHP-2500 Series Features:

Slim and Low profile (41mm)

Fanless and conduction-cooled design

Other features:

  • Built-in active PFC function
  • Output voltage and constant current level programmable
  • Protections: Short circuit / Overload /Over voltage / Over temperature
  • Built-in remote ON-OFF control
  • Optional PMBus or CANBus protocol
  • 5 years warranty
Wattage 2500 2500 2500
Input Voltage 90-264VAC, 250-370VDC 90-264VAC, 250-370VDC 90-264VAC, 250-370VDC
Output Current 104.2A 69.4A 52.1A
Output Voltage 24V 36V 48V
Output Voltage Options Single Single Single
DC output adjustment 24-28.8V 48-57.6V
Dimensions 310 x 140 x 60 310 x 140 x 60 310 x 140 x 60
Working Temperature -30 - +70°C
Safety Standards UL62368-1,TUV EN62368-1,approved; design refers to EN61558-1, EN60335-1(by request) UL62368-1,TUV EN62368-1, EAC TP TC 004 approved; design refers to EN61558-1, EN60335-1(by request), I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC, I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25/ 70%RH, UL62368-1,TUV EN62368-1,approved; design refers to EN61558-1, EN60335-1(by request)
EMC Standards EN55032(CISPR32), EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 EN55032, EN61000-3-2,3, EN61000-4-2,3,4, EN61000-6-2,EN61000-4-6,8,11 EN55032(CISPR32), EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
