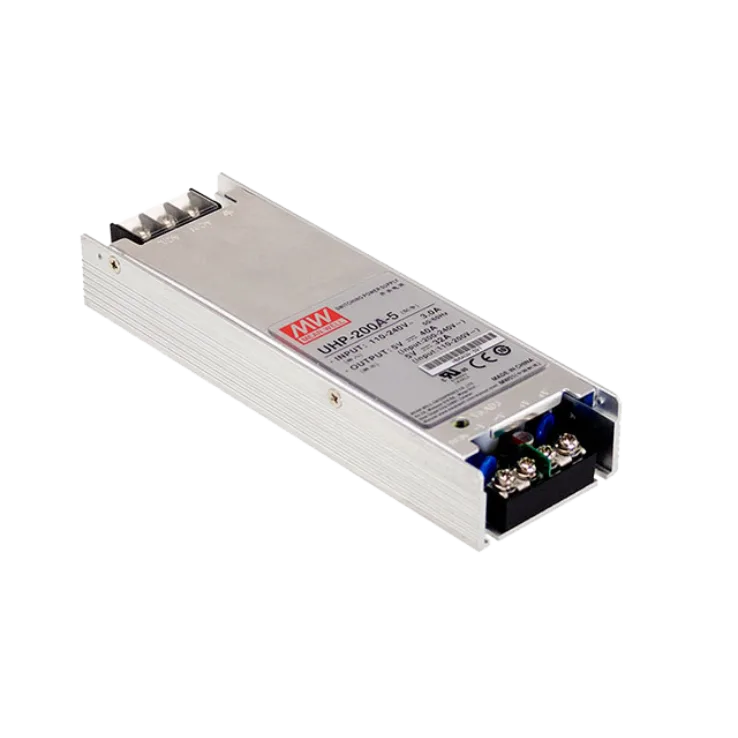

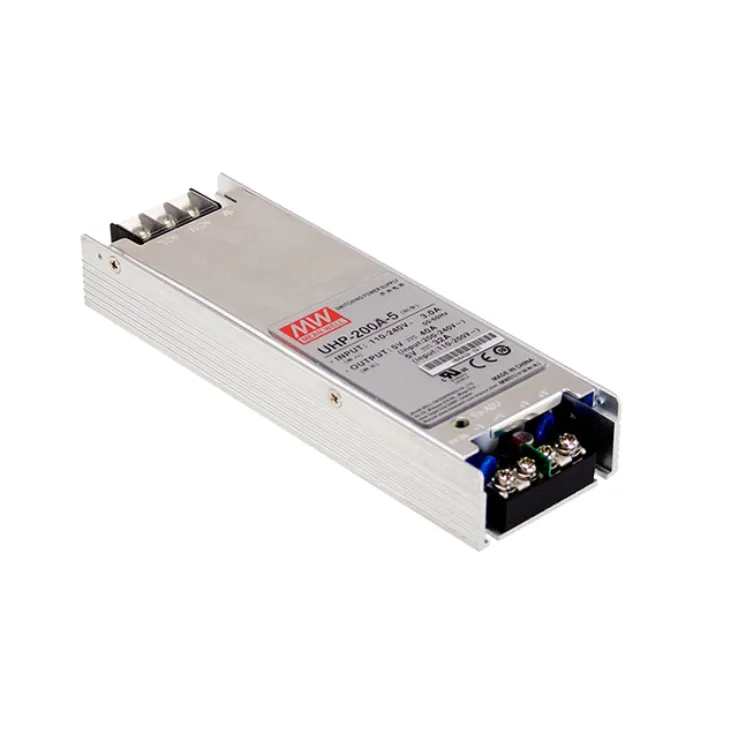

UHP-200A Series Enclosed Power Supplies 168–200W

UHP-200A Series Features:

Withstand 300VAC surge input for 5 seconds

Low leakage current <1.0mA

Protections:Short circuit / Overload/ Over voltage/ Over Temperature

Other features:

Spec	UHP-200A-4.2	UHP-200A-4.5	UHP-200A-5
Wattage	168	180	200
Input Voltage	100-264VAC 141-370VDC	100-264VAC 141-370VDC	100-264VAC 141-370VDC
Output Current	40A	40A	40A
Output Voltage	4.2	4.5	5
Output Voltage Options	Single	Single	Single
DC output adjustment	4.0-4.4V	4.3-4.7V	4.7-5.3V
Dimensions	167x 55x 26	167x 55x 26	167x 55x 26
Working Temperature	-30-+50°C
Safety Standards	UL60950-1, TUV EN60950-1, CCC GB4943 approved
EMC Standards	Compliance to EN55022 (CISPR22) GB9254, Class B, EN61000-3-2,-3, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 4KV)
