MEAN WELL

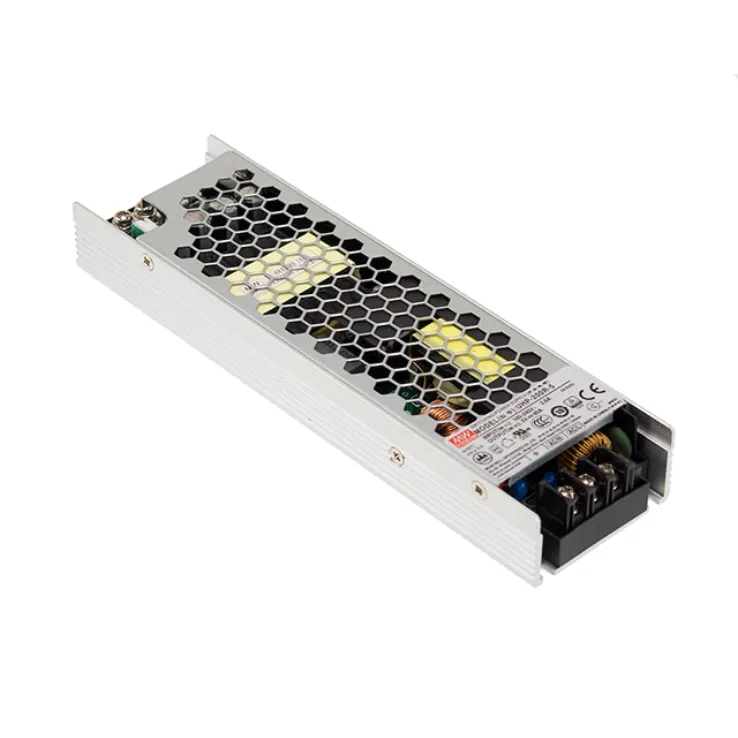

UHP-200 Series Enclosed Power Supplies 132–201.6W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
UHP-200 Series Features:
Slim and Low profile (26mm)
Fanless design, 200W convection
Protections:Short circuit / Overload/ Over voltage/ Over Temperature
Other features:
- Withstand 300VAC surge input for 5 seconds
- Built-in active PFC function
- 150% peak load capability (100ms)
- -30-+70°C working temperature
- Operating altitude up to 5000 meter
- LED Indicator for power on
- 3 years warranty
| Wattage | 132 | 168 | 200 | 200.4 | 201 | 201.6 | 201.6 | 201.6 | 132 | 168 | 200 | 200.4 | 201 | 201.6 | 201.6 | 201.6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC |
| Output Current | 40A | 40A | 40A | 16.7A | 13.4A | 8.4A | 5.6A | 4.2A | 40A | 40A | 40A | 16.7A | 13.4A | 8.4A | 5.6A | 4.2A |
| Output Voltage | 3.3 | 4.2 | 5 | 12 | 15 | 24 | 36 | 48 | 3.3 | 4.2 | 5 | 12 | 15 | 24 | 36 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single |
| DC output adjustment | 3.2-3.5V | 3.6-4.4V | 4.5-5.5V | 11.4-12.6V | 14.3-15.8V | 22.8-25.2V | 34.2-37.8V | 45.6-50.4V | 3.2-3.5V | 3.6-4.4V | 4.5-5.5V | 11.4-12.6V | 14.3-15.8V | 22.8-25.2V | 34.2-37.8V | 45.6-50.4V |
| Dimensions | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 | 194x 55x 26 |
| Working Temperature | -30-+70°C | |||||||||||||||
| Safety Standards | UL60950-1, TUV EN60950-1, EN60335-1, CCC GB4943 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032, GB9254, Class B, EN55014, EN61000-3-2, - 3 Compliance to EN61000-4-2,3,4,5,6,8,11; EN61000-6-2 (EN50082-2), heavy industry level, criteria A | |||||||||||||||
