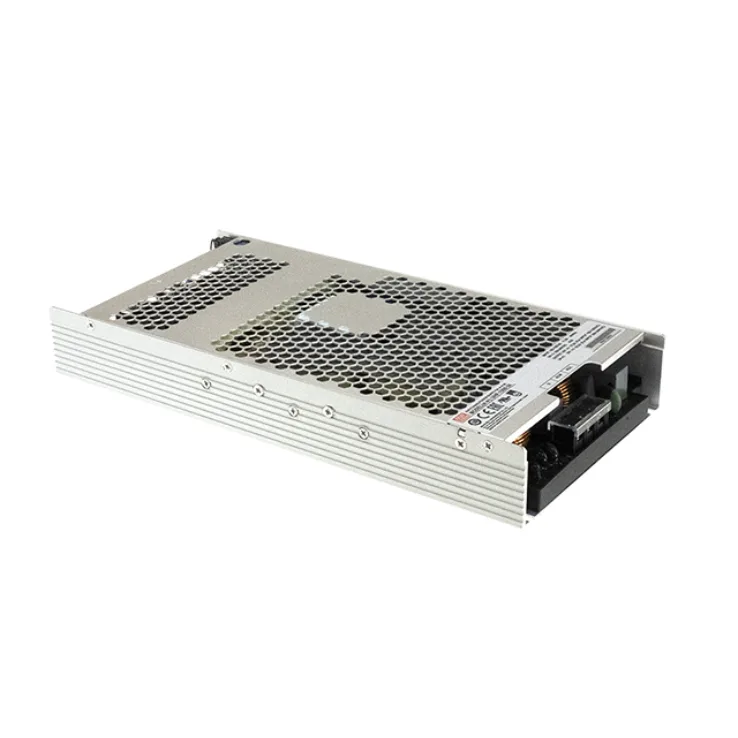

Mean Well UHP-1500 Series Enclosed Power Supplies 1500W

Download Datasheet
Models:
  • UHP-1500-24
  • UHP-1500-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

UHP-1500 Series Features:

Slim and Low profile (41mm)

Fanless and conduction-cooled design

Other features:

  • Built-in active PFC function
  • Output voltage and constant current level programmable
  • Protections: Short circuit / Overload /Over voltage / Over temperature
  • Built-in remote ON-OFF control
  • Optional PMBus or CANBus protocol
  • 5 years warranty
Wattage 1500 1500
Input Voltage 90-264VAC, 250-370VDC 90-264VAC, 250-370VDC
Output Current 62.5A 31.5A
Output Voltage 24V 48V
Output Voltage Options Single Single
DC output adjustment 24-28.8V 48-57.6V
Dimensions 290 x 140 x 41 15.24 x 10.9 x 7.1
Working Temperature -30 - +70C
Safety Standards UL62368-1,TUV EN62368-1, EAC TP TC 004 approved; Design refers to EN61558-1, EN60335-1(by request)
EMC Standards EN55032(CISPR32), EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
