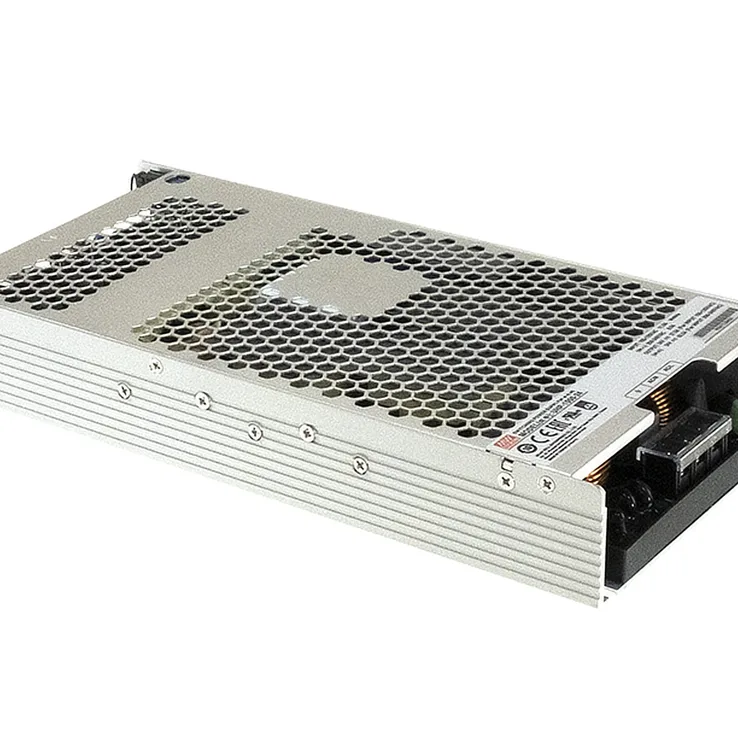

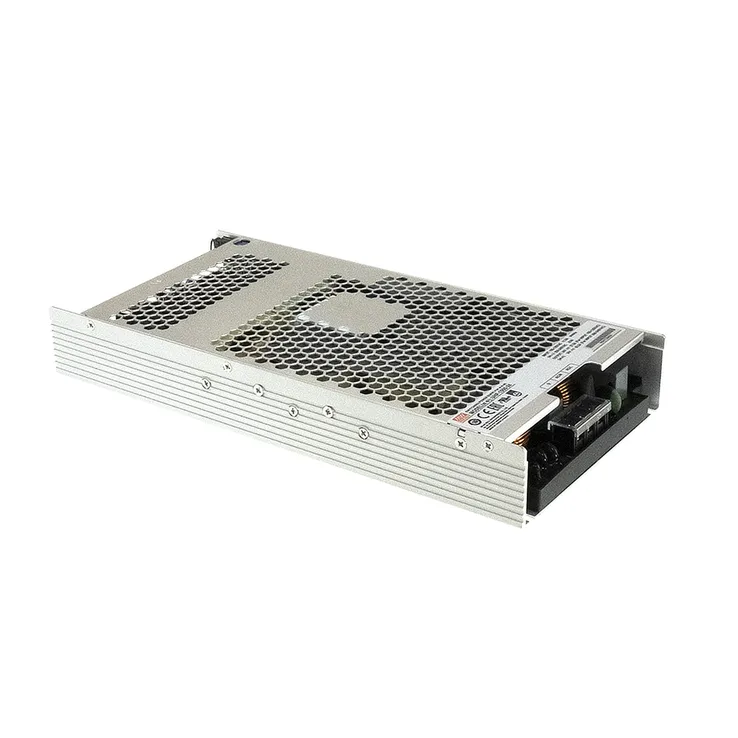

UHP-1500-HV Series Enclosed Power Supplies 1500–1501W

Download Datasheet
Models:
  • UHP-1500-115
  • UHP-1500-230
  • UHP-1500-380
  • UHP-1500-380E
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

UHP-1500-HV Series Features:

UHP-1500 series is a 1500W single-output slim type power supply unit with 1U 41mm of low profile design.

Features:

  • High voltage output (115/23/380V)
  • Fanless and conduction-cooled design
  • Slim and 1U low profile (41mm)
  • Built-in active PFC function
  • DC 12V/0.4A auxiliary power
  • Output voltage and constant current level programmable (PV/PC)
  • Protections: short circuit/over load/over voltage/over temperature
  • Built-in remote ON-OFF control and DC OK signal
  • Operating altitude up to 2000 meter (E type Note.6, Blank/PM/CAN type Note.7)
  • LED indicator for power on
  • Optional PMBus or CANBus protocol
  • 5 years warranty
Wattage 1500.75 1500 1500 1501
Input Voltage 90~264VAC 90~264VAC 90~264VAC 90~264VAC
Output Current 13.05 6.95 4.5 3.95
Output Voltage 115 230 380 380
Dimensions 290x140x41mm 290x140x41mm 290x140x41mm 290x140x41mm
Working Temperature -30~70°C
Safety Standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved, Design refers to BS EN/EN61558-1, BS EN/EN60335-1 UL6268-1, TUV BS EN/EN62368-1, EAS TP TC 004 approved, Design refers to BS EN/EN61558-1, BS EN/EN60335-1
EMC Standards BS EN/EN55032(CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-3-3
