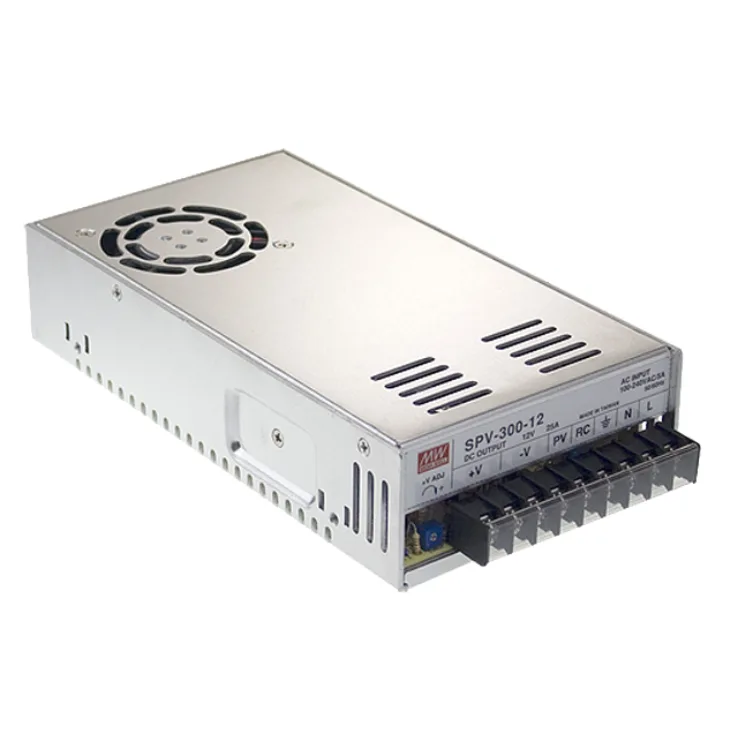

Mean Well SPV-300 Series Enclosed Power Supplies 300W

Download Datasheet
Models:
  • SPV-300-12
  • SPV-300-24
  • SPV-300-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

SPV-300 Series Features:

Output voltage programmable from 20-110% by 1-5.5 VDC external control signal

Built-in active PFC function, PF>0.95

Protection: Short circuit / Overload/ Over voltage/ Over temperature

Other Features:

  • Universal AC input/ Full range
  • Forced air cooling by built-in DC fan with fan speed control
  • 3 years warranty
Wattage 300 300 300
Input Voltage 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC
Output Current 0~25A 0~12.5A 0~6.25A
Output Voltage 12 24 48
Output Voltage Options Single Single Single
DC output adjustment -15%~+10% rated output voltage -15%~+10% rated output voltage -15%~+10% rated output voltage
Dimensions 215 x 115 x 50 215 x 115 x 50 215 x 115 x 50
Working Temperature 0~+40B0C @ 100% load, 60B0C @ 50% load
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-3-2,3, EN55024, light industry level, criteria A
