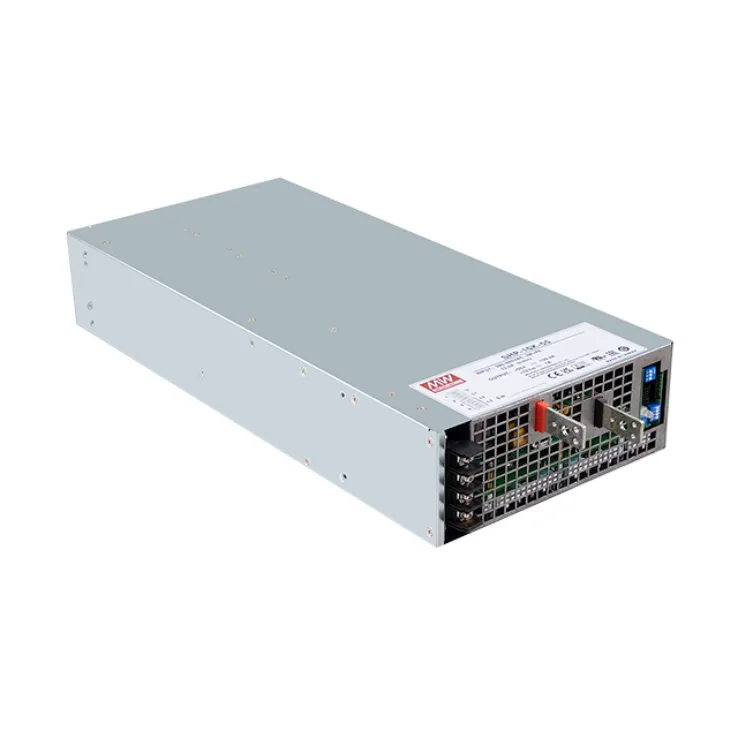

SHP-10K Series Enclosed Power Supplies 7200–10000W

Download Datasheet
Models:
  • SHP-10K-55
  • SHP-10K-115
  • SHP-10K-230
  • SHP-10K-380
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

SHP-10K Series Features:

SHP-10K is a 10KW 3 Ø 3W input AC/DC power supply.

Features:

  • 3ψ 3-wire without neutral /340~530VAC wide input range
  • High efficiency up to 97%
  • Water/forced air cooling selectable
  • Built-in CANBus/Optional PMBus/MODBus-RTU/RS-485 protocol
  • Output voltage and constant current level programmable
  • Active current sharing up to 4 units (40KW)
  • Built-in remote ON-OFF control/ Auxiliary power/ Alarm signal
  • Protections: Short circuit/ Overload/ Over voltage/ Over temperature/ Fan fail
  • 5 years warranty
Wattage 7200 10000 10000 10000
Input Voltage 3ψ3-wire / 340 ~ 530VAC 3ψ3-wire / 340 ~ 530VAC 3ψ3-wire / 340 ~ 530VAC 3ψ3-wire / 340 ~ 530VAC
Output Current 150 87 43.5 26.3
Output Voltage 55 115 230 380
Dimensions 460*211*83.5mm 460*211*83.5mm 460*211*83.5mm 460*211*83.5mm
Working Temperature -30~70°C
Safety Standards UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
EMC Standards BS EN/EN55032 (CISPR32) / EN55011 (CISPR11), BS EN/EN61000-3-2, BS EN/EN61000-3-3
