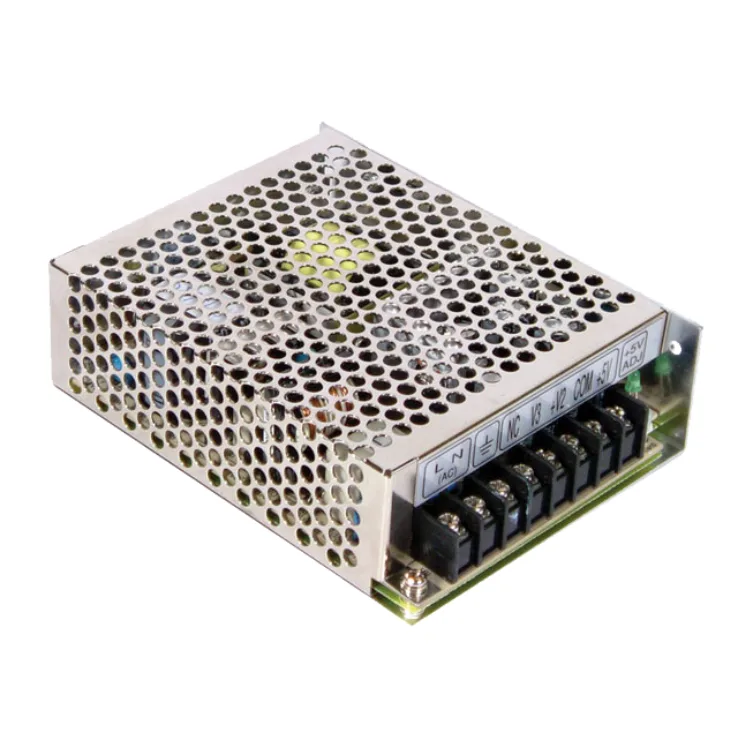

RT-65 Series Enclosed Power Supplies 64.6–68W

Download Datasheet
Models:
  • RT-65A
  • RT-65B
  • RT-65C
  • RT-65D
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

RT-65 Series Features:

Features:

  • Universal AC input /Full range
  • Protections: short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 seconds
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty
Wattage 66.1 64.6 65.5 68
Input Voltage 88~264 VAC 125~373VDC 88~264 VAC 125~373VDC 88~264 VAC 125~373VDC 88~264 VAC 125~373VDC
Output Current 6A, 2.8A, 0.5A 5A, 2.8A, 0.5A 5A, 2.2A, 0.5A 4A, 1.5A, 1A
Output Voltage 5V, 12V, -5V 5V, 12V, -12V 5V, 15V, -15V 5V, 24V, 12V
Dimensions 129*98*38mm 129*98*38mm 129*98*38mm 129*98*38mm
Working Temperature -25~+70°C
Safety Standards UL62368-1, TUV EN62368-1, EAC TP TC004 approved
EMC Standards Compliance to EN55032(CISPR32) Class B, EN61000-3-2, -3, EAC TP TC 020
