MEAN WELL

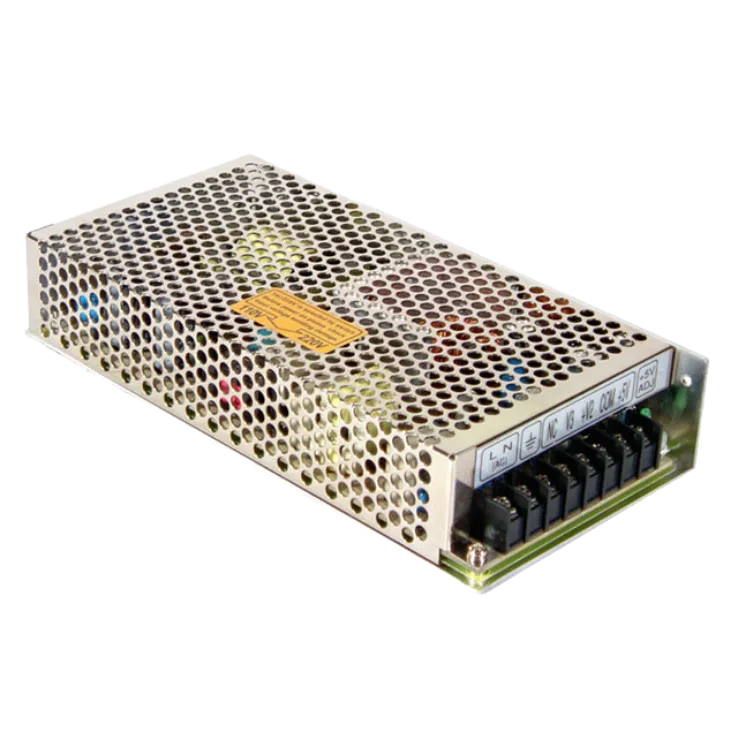

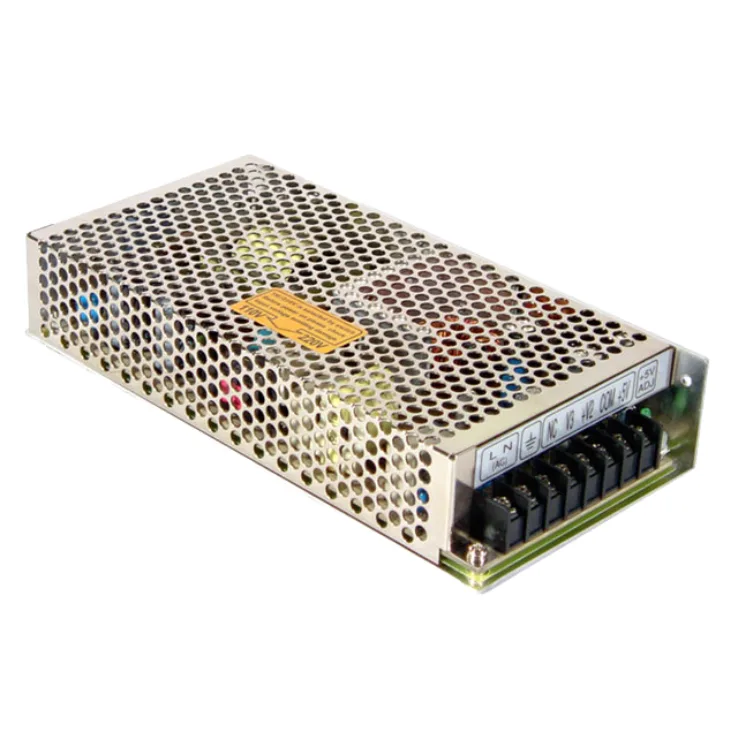

RT-125 Series Enclosed Power Supplies 131–136W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
RT-125 Series Features:
Features:
- Universal AC input /Full range
- Protections: short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105°C long life electrolytic capacitors
- Withstand 300VAC surge input for 5 seconds
- High operating temperature up to 70°C
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
| Wattage | 131 | 132 | 132.5 | 136 |
|---|---|---|---|---|
| Input Voltage | 88~132 VAC 176~264VDC | 88~132 VAC 176~264VDC | 88~132 VAC 176~264VDC | 88~132 VAC 176~264VDC |
| Output Current | 12A, 5.5A, 1A | 12A, 5A, 1A | 10A, 4.5A, 1A | 8A, 3A, 2A |
| Output Voltage | 5V, 12V, -5V | 5V , 12V, -12V | 5V, 15V, -15V | 5V, 24V, 12V |
| Dimensions | 199*98*38mm | 199*98*38mm | 199*98*38mm | 199*98*38mm |
| Working Temperature | -25~+70°C | |||
| Safety Standards | UL62368-1, TUV EN62368-1, EAC TP TC004 approved | |||
| EMC Standards | Compliance to EN55032(CISPR32) Class B, EN61000-3-2, -3, EAC TP TC 020 | |||
