MEAN WELL

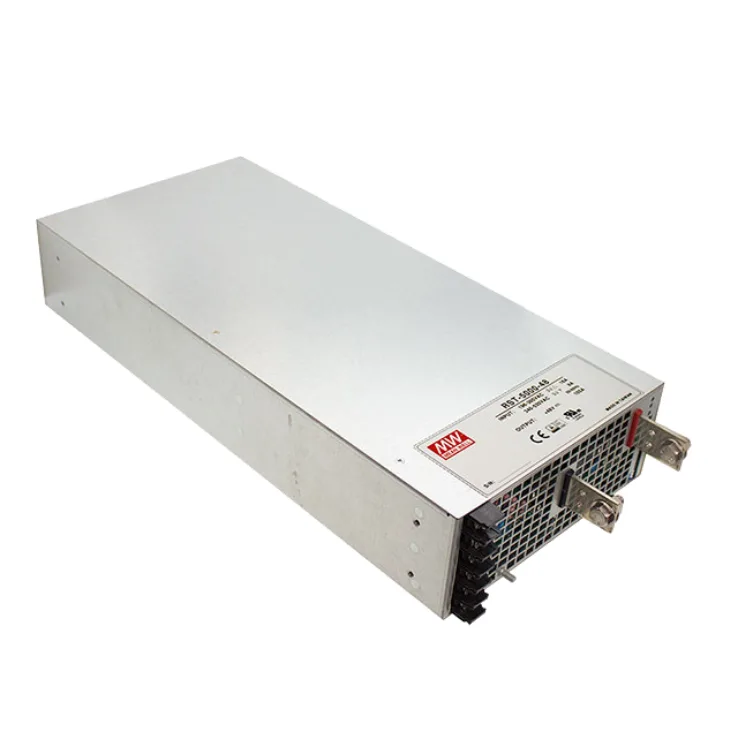

RST-5000 Series Enclosed Power Supplies 4800–5040W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
RST-5000 Series Features:
3 Phase 3 wire Δ AC 340~530V or 3 Phase 4 wire Y AC 196~305V wide range input
High Efficiency up to 91%
Built-in active PFC function
Protections: Short circuit/ Overload/ Over voltage/ Over temperature/ Fan alarm
Other features:
- Forced air cooling by built-in DC with fan speed control function
- Output voltage can be trimmed between 20~120% of the rated output voltage
- Output current can be trimmed between 20~100% of the rated output current
- Current sharing up to 4 units
- Alarm signal output (relay contact and TTL signal): AC fail, DC OK, fan fail
- Built-in 12V/ 0.1A auxiliary output for remote control
- Built-in remote ON-OFF control
- Built-in remote sense function
- 5 years warranty
| Wattage | 4800 | 5040 |
|---|---|---|
| Input Voltage | 3 Phase 3 wire N AC 196~305V or 3 Phase 4 wire Y AC 340~530V wide range input | 3 Phase 3 wire N AC 196~305V or 3 Phase 4 wire Y AC 340~530V wide range input |
| Output Current | 0~200 | 0~105 |
| Output Voltage | 24 | 48 |
| Output Voltage Options | Single | Single |
| DC output adjustment | 23.5~28.8 | 23.5~28.8 |
| Dimensions | 460x 211x 83.5 | 460x 211x 83.5 |
| Working Temperature | -40~+85°C | |
| Safety Standards | UL60950-1, TUV EN60950-1 approved | |
| EMC Standards | Compliance to EN55022 (CISPR22) Class A, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, heavy industry level, criteria A | |
