MEAN WELL

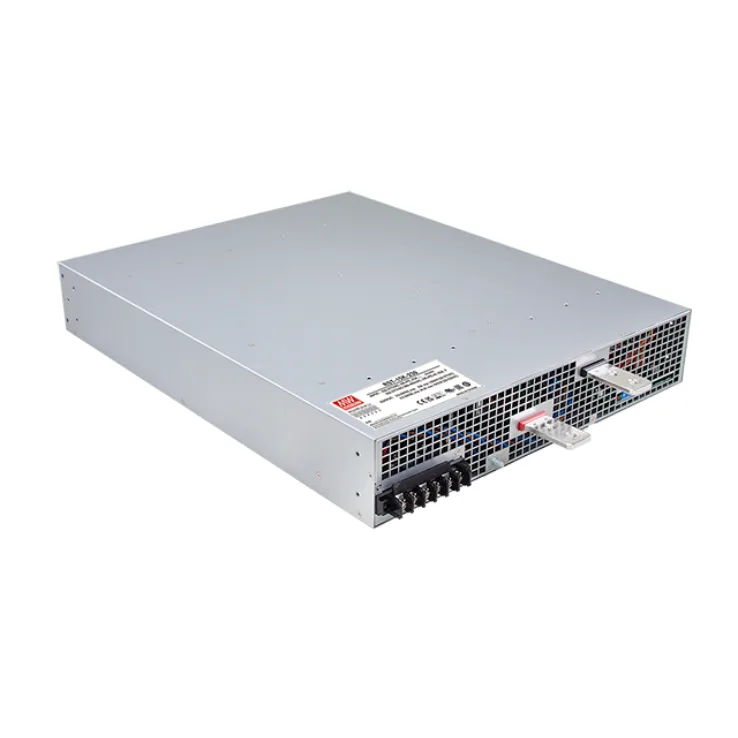

RST-15K Series Enclosed Power Supplies 14904–15030W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
RST-15K Series Features:
RST-15K is a 15KW single output enclosed type AC/DC power supply.
Features:
- 3Ø4W AC input with 340~530V wide range
- High efficiency up to 95%
- Water/forced air cooling types selectable
- Output voltage and current level programmable
- Wide voltage adjustment range 1%~120%
- Active current sharing (Parallel) up to 30kW
- Protections: Short circuit, Over voltage, Overload, Over temperature
- Built-in T-alarm / DC-OK / Fan fail / AC fail signals
- 5 years warranty
| Wattage | 14950 | 14904 | 15030 |
|---|---|---|---|
| Input Voltage | 196~305VAC | 196~305VAC | 196~305VAC |
| Output Current | 130 | 69 | 45 |
| Output Voltage | 115 | 230 | 380 |
| Dimensions | 540x424x83.5mm | 540x424x83.5mm | 540x424x83.5mm |
| Working Temperature | -30~70°C | ||
| Safety Standards | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||
| EMC Standards | BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11) BS EN/EN61000-3-12 BS EN/EN61000-3-3 | ||
