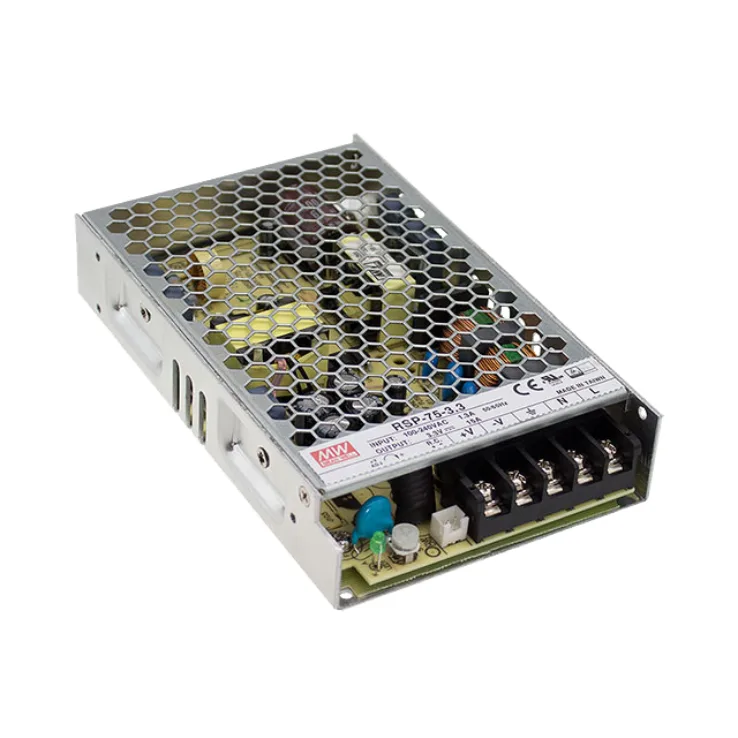

Mean Well RSP-75 Series Enclosed Power Supplies 50–77W

Download Datasheet
Models:
  • RSP-75-12
  • RSP-75-13.5
  • RSP-75-15
  • RSP-75-24
  • RSP-75-27
  • RSP-75-3.3
  • RSP-75-48
  • RSP-75-5
  • RSP-75-7.5
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RSP-75 Series Features:

1U low profile 30mm

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage

Other features:

  • Universal AC input / Full range
  • Built-in constant current limiting circuit
  • Remote ON-OFF control
  • LED indicator for power on
  • 100% full load burn-in test
  • Cooling by free air convection
  • 3 years warranty
Wattage 75 75 75 75 75 50 77 75 75
Input Voltage 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC
Output Current 0~6.3 0~5.6 0~5.0 0~3.2 0~2.8 0~15 0~1.6 0~15 0~10
Output Voltage 12 13.5 15 24 27 3.3 48 5 7.5
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment 11.4~13.2V 12.8~14.9V 14.3~16.5V 22.8~26.4V 25.7~29.7V 3.14 ~ 3.63V 45.6~52.8V 4.75~5.5V 7.13~8.25V
Dimensions 159x 97x 30 159x 97x 30 159x 97x 30 159x 97x 30 159x 97x 30 159x 97x 30 159x 97x 30 159x 97x 30 159x 97x 30
Working Temperature -10~+60B0C (Refer to "Derating Curve")
Safety Standards UL60950-1, TUV EN60950-1, CCC GB4943 approved; Design refer to EN60335-1
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, GB9254 class B, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
