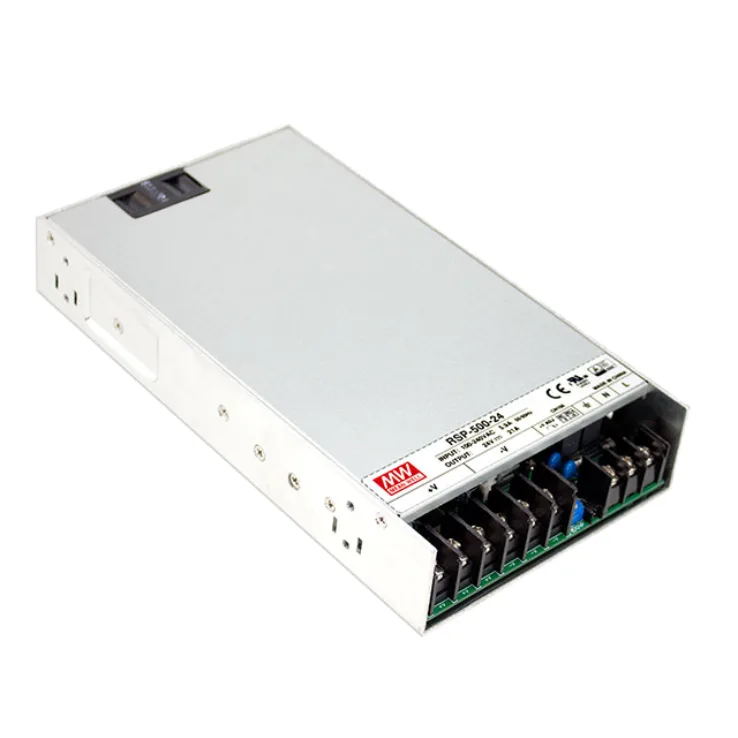

Mean Well RSP-500 Series Enclosed Power Supplies 297–504W

Download Datasheet
Models:
  • RSP-500-12
  • RSP-500-15
  • RSP-500-24
  • RSP-500-27
  • RSP-500-3.3
  • RSP-500-4
  • RSP-500-48
  • RSP-500-5
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RSP-500 Series Features:

1U low profile 40.5mm

Built-in active PFC function, PF>0.95

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • Universal AC input / Full range
  • Forced air cooling by built-in DC Fan with fan ON-OFF control function
  • High efficiency up to 90%
  • Built-in remote ON-OFF control
  • Built-in remote sense function
  • LED indicator for power on
  • 3 years warranty
Wattage 500.4 501 504 502.2 297 360 504 450
Input Voltage 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC 88~264VAC 124~370VDC
Output Current 0~41.7 0~33.4 0~21 0~18.6 0~90 0~90 0~10.5 0~90
Output Voltage 12 15 24 27 3.3 4 48 5
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment 10~13.2 13.5~18 20~26.4 26~30 2.8~3.6 3.6~4.3 41~56 4.5~5.5
Dimensions 230x 127x 40.5 230x 127x 40.5 230x 127x 40.5 230x 127x 40.5 230x 127x 40.5 230x 127x 40.5 230x 127x 40.5 230x 127x 40.5
Working Temperature -10~+60B0C (Refer to "Derating Curve")
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, EN61204-3 heavy industry level, criteria A
