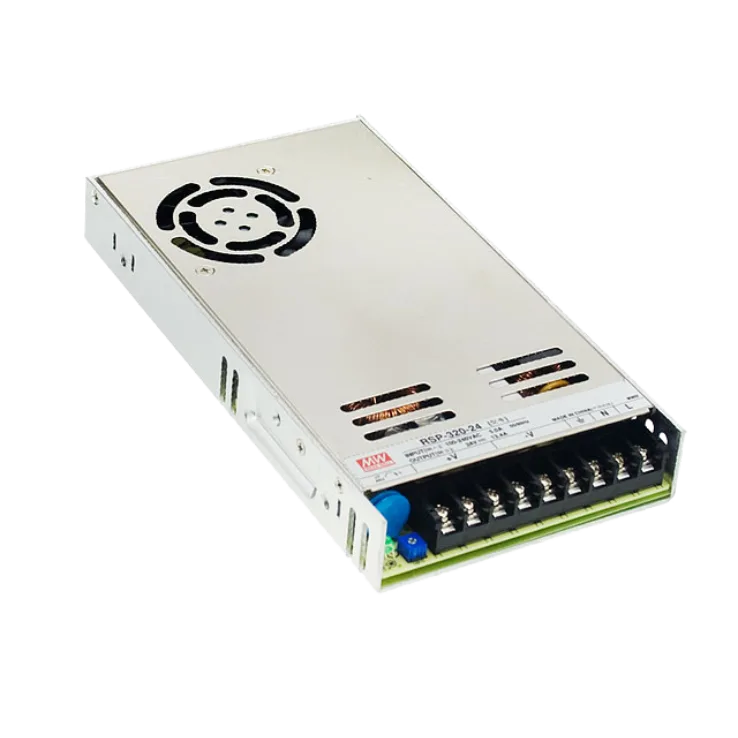

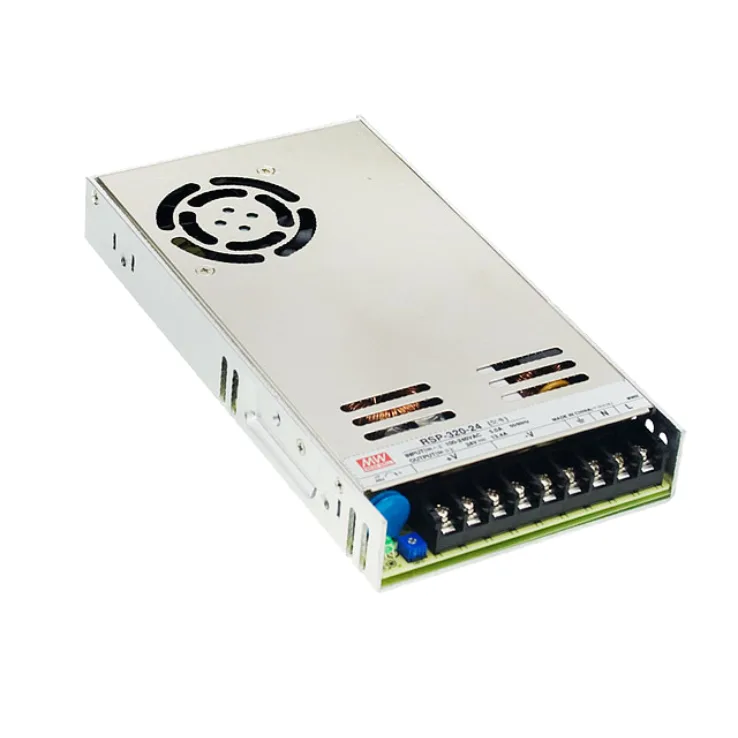

Mean Well RSP-320 Series Enclosed Power Supplies 150–320W

Download Datasheet
Models:
  • RSP-320-12
  • RSP-320-13.5
  • RSP-320-15
  • RSP-320-2.5
  • RSP-320-24
  • RSP-320-27
  • RSP-320-3.3
  • RSP-320-36
  • RSP-320-4
  • RSP-320-48
  • RSP-320-5
  • RSP-320-7.5
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RSP-320 Series Features:

Universal AC input / Full range

Built-in active PFC function, PF>0.95

Protections: Short circuit / Overload / Over voltage / Over temperature

  • Forced air cooling by built-in DC Fan
  • Built-in fan speed control
  • 1U low profile 30mm
  • Optional conformal coating (RSP-320- CC)
  • LED indicator for power on
  • 3 years warranty
Wattage 320 320 320 150 320 320 200 320 240 320 300 320
Input Voltage 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC 88~264VAC, 124~370VDC
Output Current 0~26.7A 0~23.8A 0~21.4A 0~60A 0~13.4A 0~11.9A 0~60A 0~8.9A 0~60A 0~6.7A 0~60A 0~40A
Output Voltage 12 13.5 15 2.5 24 27 3.3 36 4.2 48 5 7.5
Output Voltage Options Single Single Single Single Single Single Single Single Single Single Single Single
DC output adjustment 10~13.2VDC 12~15VDC 13.5~18VDC 2.35~2.85VDC 20~26.4VDC 26~31.5VDC 2.97~3.8VDC 12~15VDC 3.7~4.3VDC 41~56VDC 4.5~5.5VDC 6~9VDC
Dimensions 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30 215x 115x 30
Working Temperature -10~+60B0C (Refer to "Derating Curve")
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
