MEAN WELL

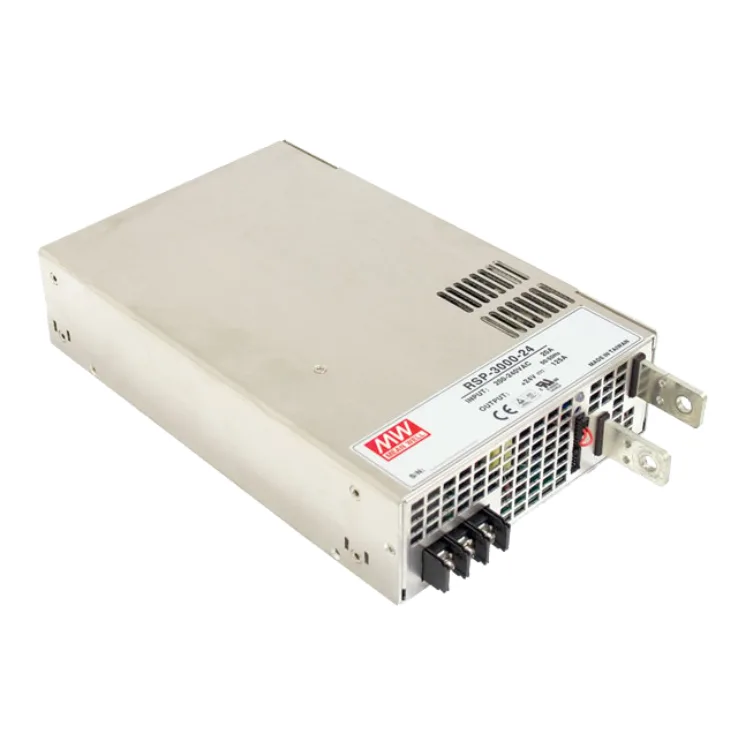

RSP-3000 Series Enclosed Power Supplies 2400–3000W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
RSP-3000 Series Features:
Conformally Coated
Built-in active PFC function, PF >0.95
Protections: Short circuit/ Overload/ Over voltage/ Over Temp./ Fan alarm
Other features:
- High power density 15.6W/in³
- AC input 180~264VAC only
- Built-in 12V/0.1A auxiliary output
- Alarm signal output (TTL signal & relay contact)
- Output voltage can be trimmed between 20~110% of the rated output voltage
- Current sharing up to 3 units
- Remote ON/OFF control & remote sense
- Forced air cooling by built-in DC with fan speed control function
- 3 years warranty
| Wattage | 2400 | 3000 | 3000 | 3000 |
|---|---|---|---|---|
| Input Voltage | 180~264VAC; 254~370VDC | 180~264VAC; 254~370VDC | 180~264VAC; 254~370VDC | 180~264VAC; 254~370VDC |
| Output Current | 0~200 | 0~125 | 0~62.5 | 0~62.5 |
| Output Voltage | 12 | 24 | 48 | 48 |
| Output Voltage Options | Single | Single | Single | Single |
| DC output adjustment | +/-10% rated output voltage | +/-10% rated output voltage | +/-10% rated output voltage | +/-10% rated output voltage |
| Dimensions | 278 x 177.8 x 63.5 | 278 x 177.8 x 63.5 | 278 x 177.8 x 63.5 | 278 x 177.8 x 63.5 |
| Working Temperature | -20~+70°C | |||
| Safety Standards | UL60950-1, TUV EN60950-1 approved | |||
| EMC Standards | EN55022 class B, EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11 | |||
