MEAN WELL

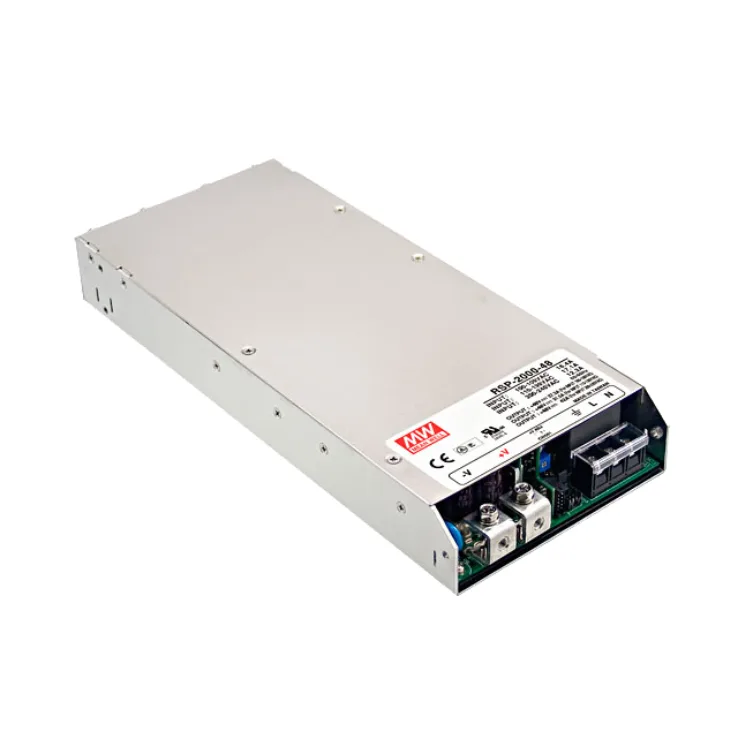

RSP-2000 series Enclosed Power Supplies 1200–2016W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
RSP-2000 series Features:
RSP-2000 is a 2KW single output enclosed type AC/DC power supply with 1U low profile
Features:
- Universal AC input / Full range
- Built-in active PFC function
- High efficiency up to 92%
- Forced air cooling by built-in DC fan
- Output voltage programmable
- Active current sharing up to 8000W (3+1)
- Built-in remote ON-OFF control / remote sense / auxiliary power / DC OK signal / OTP alarm signal
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Optional conformal coating
- 5 years warranty
| Wattage | 1200 | 1920 | 2016 |
|---|---|---|---|
| Input Voltage | 90 ~ 264VAC | 90 ~ 264VAC | 90 ~ 264VAC |
| Output Current | 0 ~ 100A | 80A | 42A |
| Output Voltage | 12V | 24V | 48V |
| Dimensions | 295 X 127 X 41 mm | 295 X 127 X 41 mm | 295 X 127 X 41 mm |
| Working Temperature | -35 ~ +70℃ | ||
| Safety Standards | UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, AS/NZS62368.1, BIS IS13252(Part1): 2010/IEC 60950-1:2005 (except 48V), EAC TP TC 004 approved | ||
