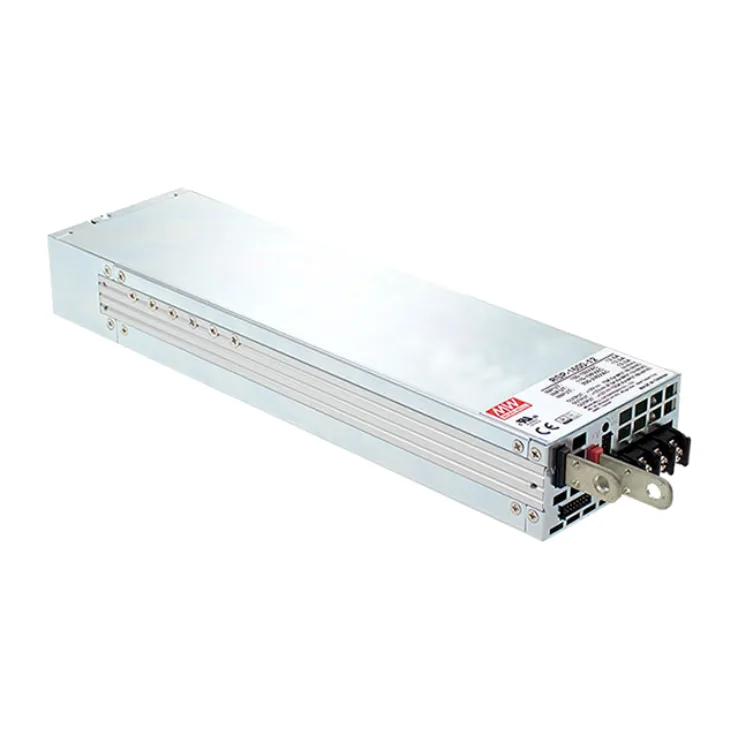

RSP-1600 CAN Series Enclosed Power Supplies 1593–1608W

RSP-1600 CAN Series Features:

Active current sharing up to 9600W (5+1)

Protections: Short circuit / Overload / Over voltage / Over Temperature

Other Features:

Built-in active PFC function
Universal AC Input / Full range
High efficiency up to 93%
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable
Suitable for BF application with appropriate system consideration
Built-in remote ON-OFF control / remote sense / auxiliary power / DC OK signal / OTP alarm signal
CANBus protocol
5 years warranty

Spec	RSP-1600-24CAN	RSP-1600-27CAN	RSP-1600-48CAN
Wattage	1608	1593	1608
Input Voltage	90~264VAC	90~264VAC	90~264VAC
Output Current	0~67	0~59	0~33.5
Output Voltage	24	27	48
Dimensions	300 x 85 x 41	300 x 85 x 41	300 x 85 x 41
Working Temperature	-30~+70°C
Safety Standards	UL60950-1, TUV EN60950-1 approved
EMC Standards	EN55022 (CISPR22), EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11 EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
