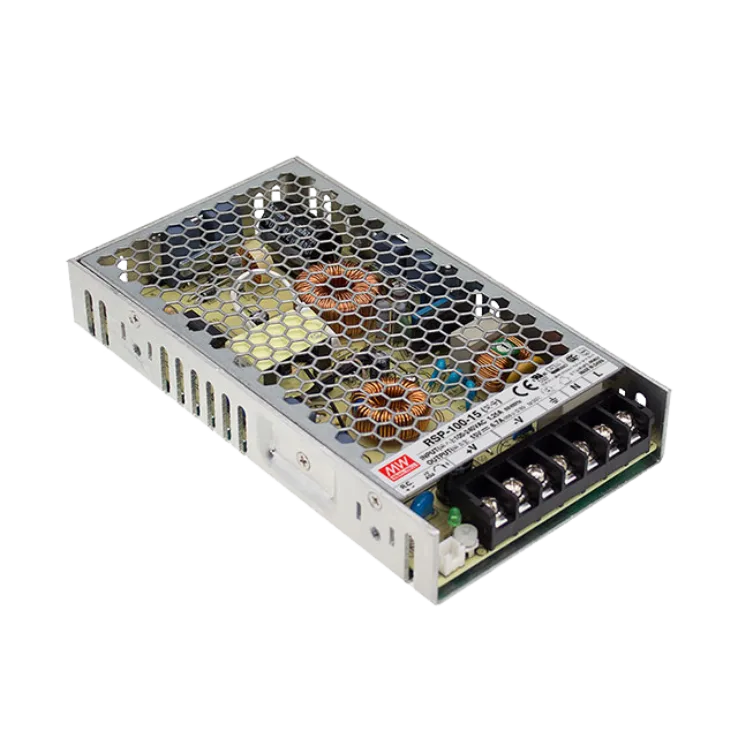

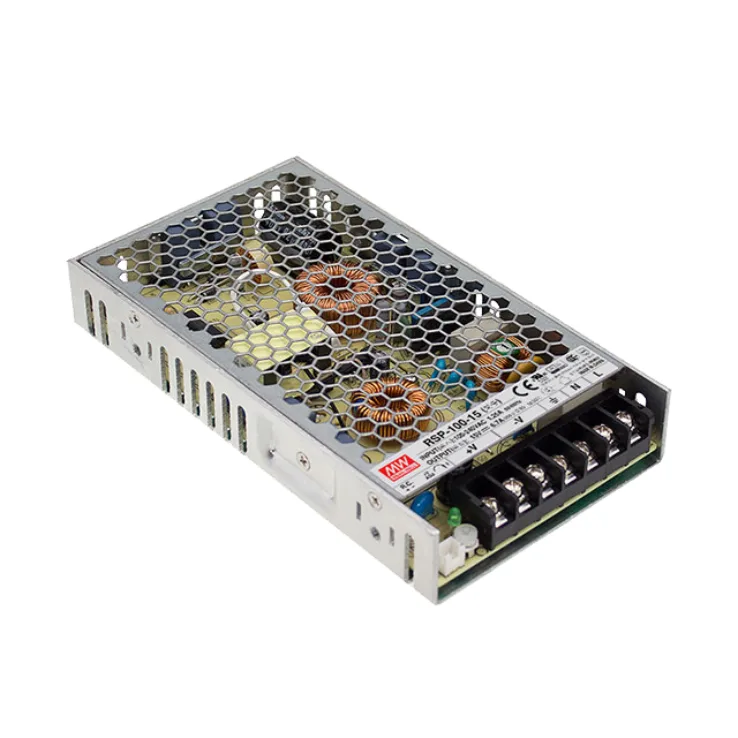

Mean Well RSP-100 Series Enclosed Power Supplies 66–103W

Download Datasheet
Models:
  • RSP-100-12
  • RSP-100-13.5
  • RSP-100-15
  • RSP-100-24
  • RSP-100-27
  • RSP-100-3.3
  • RSP-100-48
  • RSP-100-5
  • RSP-100-7.5
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RSP-100 Series Features:

Universal AC input / Full range

Built-in active PFC function, PF>0.95

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • Built-in constant current limiting circuit
  • Cooling by free air convection
  • Remote ON-OFF control
  • 1U low profile 30mm
  • LED indicator for power on
  • 100% full load burn-in test
  • 3 years warranty
Wattage 102 101 101 101 103 66 101 100 101
Input Voltage 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC 85 ~ 264VAC 120 ~ 370VDC
Output Current 0~8.5A 0~7.5A 0~6.7A 0~4.2A 0~3.8A 0~20A 0~2.1A 0~20A 0~13.5A
Output Voltage 12 13.5 15 24 27 3.3 48 5 7.5
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment 11.4 ~ 13.2V 12.8 ~ 14.9V 14.3 ~ 16.5V 22.8 ~ 26.4V 25.7 ~ 29.7V 3.14~3.63V 45.6 ~ 52.8V 4.75 ~ 5.5V 7.13 ~ 8.25V
Dimensions 179x 99x 30 179x 99x 30 179x 99x 30 179x 99x 30 179x 99x 30 179x 99x 30 179x 99x 30 179x 99x 30 179x 99x 30
Working Temperature -25~+70B0C (refer to output derating curve)
Safety Standards UL60950-1, TUV EN60950-1, CCC GB4943 approved; Design refer to EN60335-1
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, GB9254 class B, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
