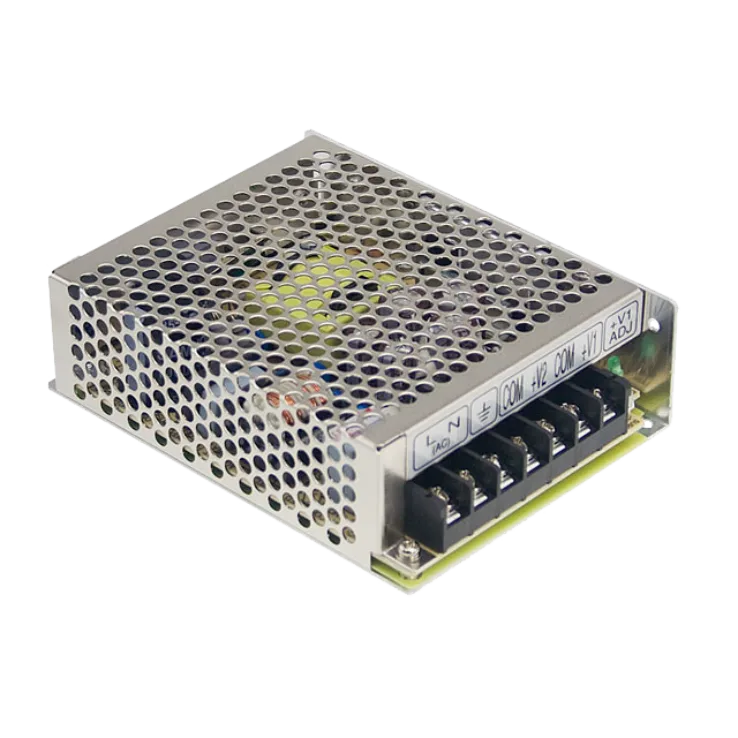

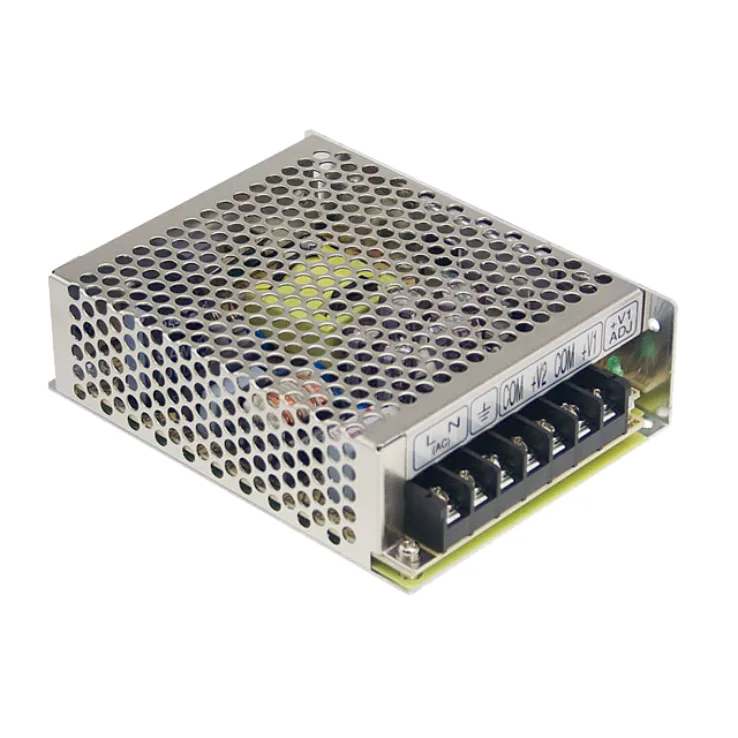

RS-50 Series Enclosed Power Supplies 33–53W

RS-50 Series Features:

No Load power consumption <0.5W

Protections: Short circuit/ Overload/ Over voltage/Over temp.

Other features:

Spec	RS-50-3.3	RS-50-5	RS-50-12	RS-50-15	RS-50-24	RS-50-48
Wattage	33	50	50	50	50	53
Input Voltage	88~264 AC, 125~373 DC	88~264 AC, 125~373 DC	88~264 AC, 125~373 DC	88~264 AC, 125~373 DC	88~264 AC, 125~373 DC	88~264 AC, 125~373 DC
Output Current	0~10	0~10	0~4.2	0~3.4	0~2.2	0~1.1
Output Voltage	3.3	5	12	15	24	48
Output Voltage Options	Single	Single	Single	Single	Single	Single
DC output adjustment	3.0~3.6	4.75~5.5	10.8~13.2	13.5~16.5	22~27.2	42~54
Dimensions	99 x 97 x 36	99 x 97 x 36	99 x 97 x 36	99 x 97 x 36	99 x 97 x 36	99 x 97 x 36
Working Temperature	-25-+70°C (refer to output derating curve)
Safety Standards	UL60950-1, TUV EN60950-1 approved
EMC Standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2
