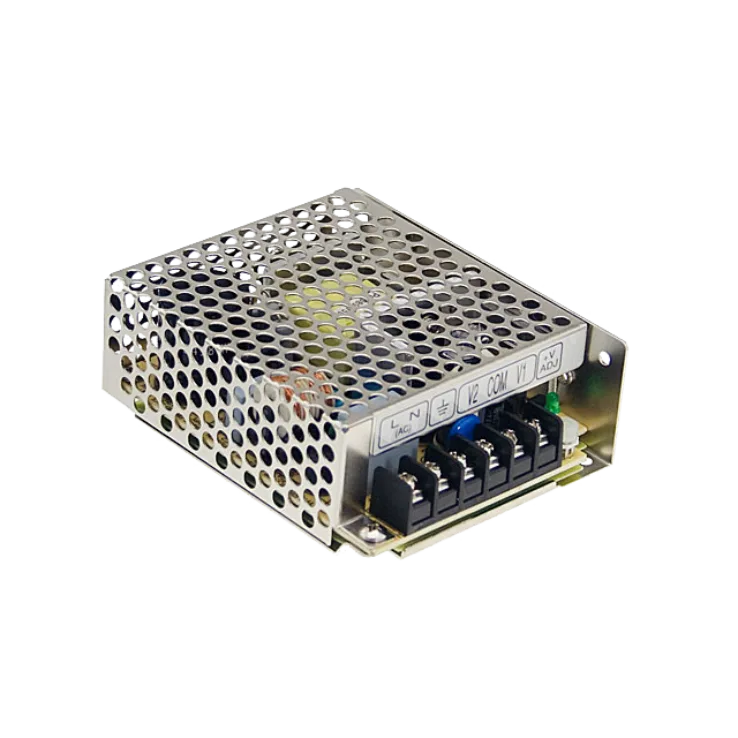

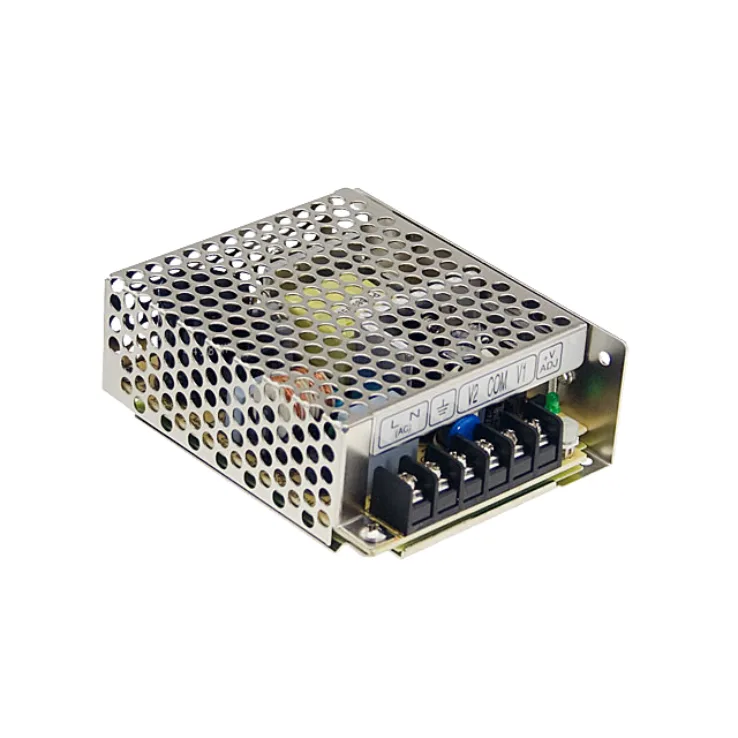

RS-35 Series Enclosed Power Supplies 23–38W

Download Datasheet
Models:
  • RS-35-3.3
  • RS-35-5
  • RS-35-12
  • RS-35-15
  • RS-35-24
  • RS-35-48
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

RS-35 Series Features:

No Load power consumption <0.5W

Protections: Short circuit/ Overload/ Over voltage/Over temp.

Other features:

  • LED indicator for power on
  • 100% full load burn-in test
  • Withstand 300VAC surge input for 5 seconds
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • Uses 105°C long life electrolytic capacitors
  • Miniature size, high power density
  • High efficiency, long life and high reliability
  • 3 years warranty
Wattage 23 35 36 36 36 38
Input Voltage 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC
Output Current 0~7.0 0~7.0 0~3.0 0~2.4 0~1.5 0~3.0
Output Voltage 3.3 5 12 15 24 48
Output Voltage Options Single Single Single Single Single Single
DC output adjustment 2.9~3.6 4.5~5.5 10.8~13.2 13.5~16.5 22~27.6 42~54
Dimensions 99 x 82 x 35 99 x 82 x 35 99 x 82 x 35 99 x 82 x 35 99 x 82 x 35 99 x 82 x 35
Working Temperature -40-+70°C (refer to output derating curve)
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2
