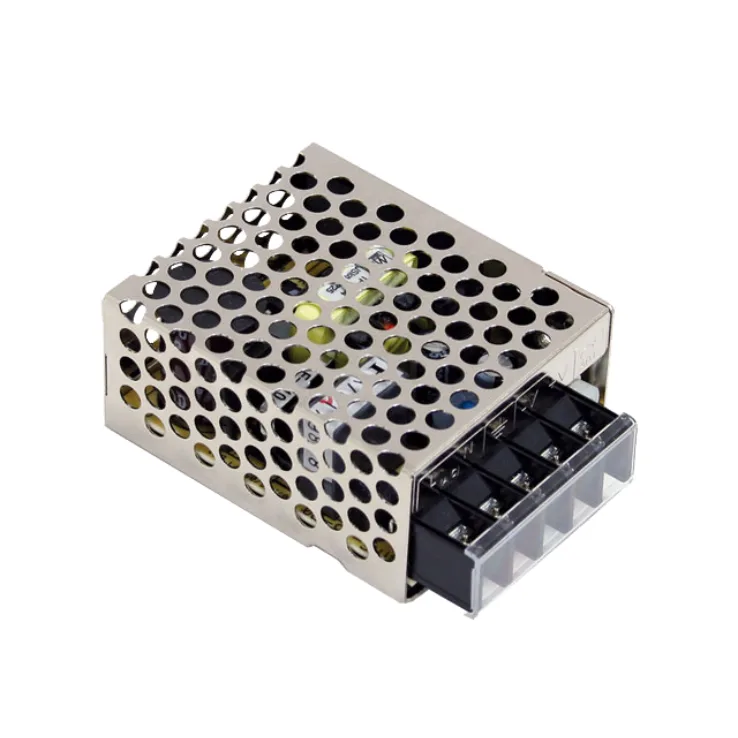

Mean Well RS-15 Series Enclosed Power Supplies 10–15W

Download Datasheet
Models:
  • RS-15-12
  • RS-15-15
  • RS-15-24
  • RS-15-3.3
  • RS-15-48
  • RS-15-5
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RS-15 Series Features:

No Load power consumption <0.5W

Protections: Short circuit/ Overload/ Over voltage/Over temp.

Other features:

  • LED indicator for power on
  • 100% full load burn-in test
  • Withstand 300VAC surge input for 5 seconds
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • Uses 105°C long life electrolytic capacitors
  • Minature size, high power density
  • High efficiency, long life and high reliability
  • 3 years warranty
Wattage 15 15 15 10 15 15
Input Voltage 85~264 AC, 120~370 DC 85~264 AC, 120~370 DC 85~264 AC, 120~370 DC 85~264 AC, 120~370 DC 85~264 AC, 120~370 DC 85~264 AC, 120~370 DC
Output Current 0~1.3 0~1.0 0~0.625 0~3.0 0~0.313 0~3.0
Output Voltage 12 15 24 3.3 48 5
Output Voltage Options Single Single Single Single Single Single
DC output adjustment 10.8~13.2 13.5~16.5 22~27.6 2.9~3.6 43.2~52.8 4.75~5.5
Dimensions 62.5 x 51 x 28 62.5 x 51 x 28 62.5 x 51 x 28 62.5 x 51 x 28 62.5 x 51 x 28 62.5 x 51 x 28
Working Temperature -40-+70B0C (refer to output derating curve) -40~+70B0C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2
