Mean Well Mean Well logo

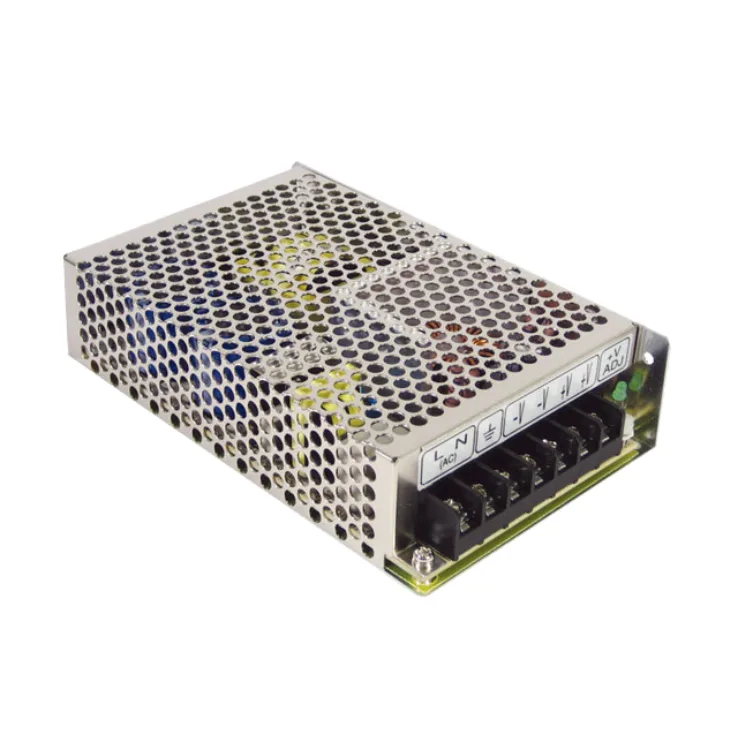

RS-100 Series Enclosed Power Supplies 66–110W

Download Datasheet
Models:
  • RS-100-3.3
  • RS-100-5
  • RS-100-12
  • RS-100-15
  • RS-100-24
  • RS-100-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RS-100 Series Features:

High efficiency, long life and high reliability

Miniature size, high power density

Protections: Short circuit/ Overload/ Over voltage.

Other features:

  • Meet EMS EN50082-2/EN61000-6-2 heavy industry level
  • 100% full load burn-in test
  • Withstand 300VAC surge input for 5 seconds
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • Uses 105°C long life electrolytic capacitors
  • 3 years warranty
Wattage 66 80 100 105 108 110
Input Voltage 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC
Output Current 0~20 0~16 0~8.5 0~7.0 0~4.5 0~2.3
Output Voltage 3.3 5 12 15 24 48
Output Voltage Options Single Single Single Single Single Single
DC output adjustment 3.2~3.5 4.75~5.5 11.4~13.2 +/-10% via pot. 22.8~26.4 45.6~52.8
Dimensions 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38
Working Temperature -40-+70°C (refer to output derating curve)
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2
