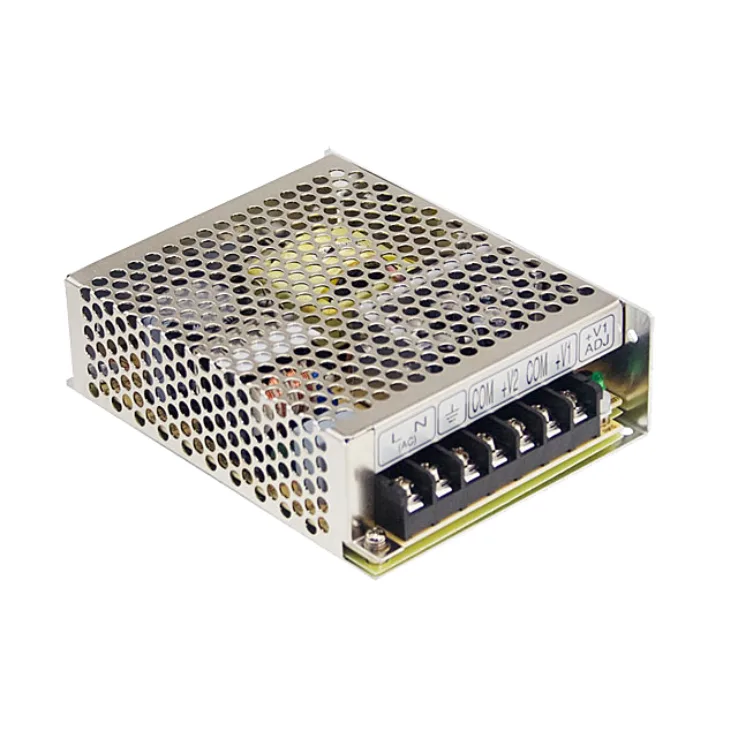

Mean Well RD-65 Series Enclosed Power Supplies 65W

Download Datasheet
Models:
  • RD-65A
  • RD-65B
Manufacturer: Mean Well
Type: Enclosed Power Supplies

RD-65 Series Features:

Protections: Short circuit/ Overload/ Over voltage.

Other features:

  • LED indicator for power on
  • 100% full load burn-in test
  • Withstand 300VAC surge input for 5 seconds
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • Uses 105°C long life electrolytic capacitors
  • Minature size, high power density
  • High efficiency, long life and high reliability
  • 3 years warranty
Wattage 65 65
Input Voltage 88~264 AC, 125~373 DC 88~264 AC, 125~373 DC
Output Current 0.3~8.0, 0.2~4.0 0.3~8.0, 0.2~3.0
Output Voltage 5, 12 5, 24
Output Voltage Options Dual Dual
DC output adjustment CH1 -5%~+10% via pot. CH1 -5%~+10% via pot.
Dimensions 129 x 98 x 38 129 x 98 x 38
Working Temperature -20~+70B0C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2
