MEAN WELL

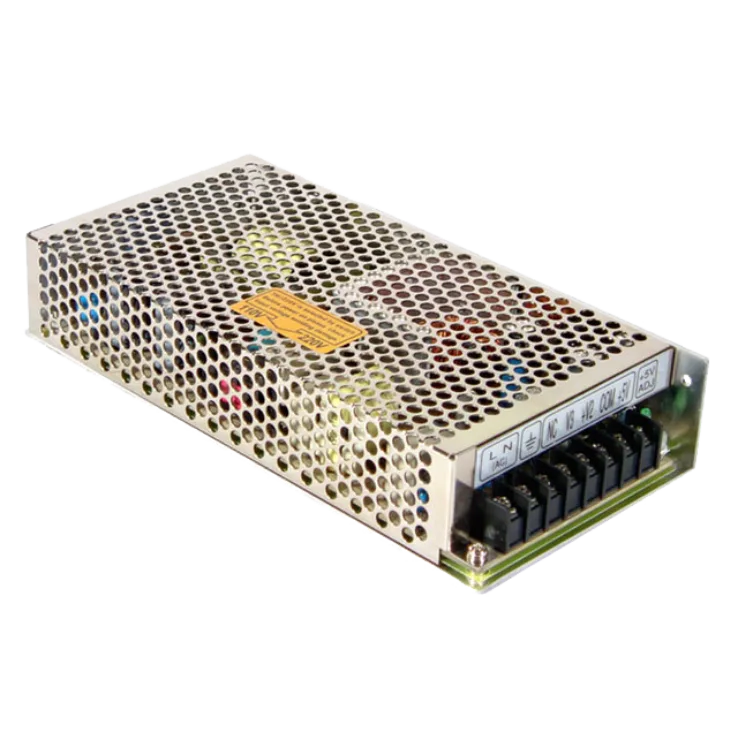

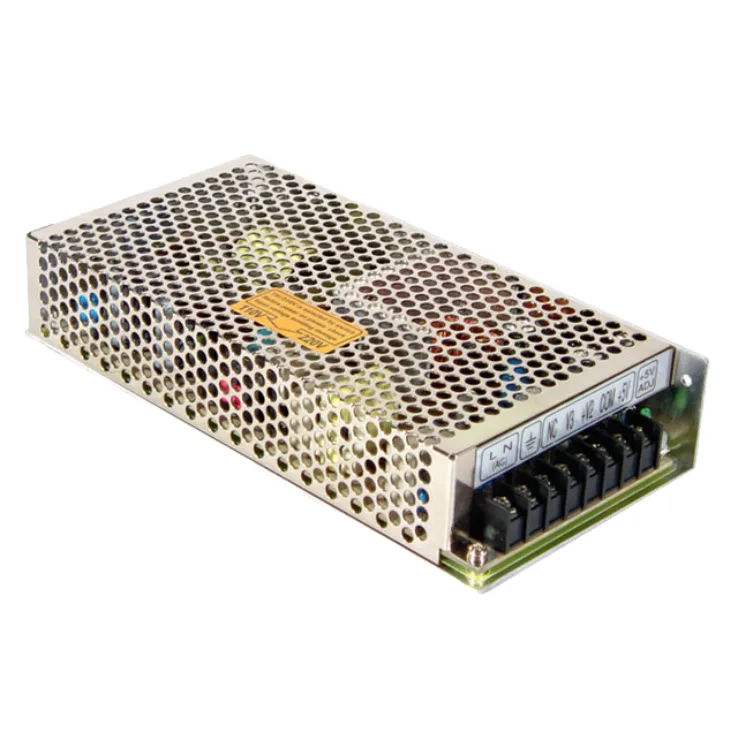

RD-125 Series Enclosed Power Supplies 125W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
RD-125 Series Features:
Protections: Short circuit/ Overload/ Over voltage.
Other features:
- LED indicator for power on
- 100% full load burn-in test
- Withstand 300VAC surge input for 5 seconds
- High operating temperature up to 70°C
- Withstand 5G vibration test
- Uses 105°C long life electrolytic capacitors
- Miniature size, high power density
- High efficiency, long life and high reliability
- 3 years warranty
| Wattage | 125 | 125 | 125 | 125 | 125 | 125 | 125 | 125 |
|---|---|---|---|---|---|---|---|---|
| Input Voltage | 115 / 230 VAC by switch | 115 / 230 VAC by switch | 115 / 230 VAC by switch | 115 / 230 VAC by switch | 115 / 230 VAC by switch | 115 / 230 VAC by switch | 115 / 230 VAC by switch | 115 / 230 VAC by switch |
| Output Current | 0~7, 0~5 | 0~7, 0~2.5 | 0~5, 0~7 | 0~4, 0~2.5 | 0~2.5, 0~7 | 0~2.5, 0~4 | 0~12, 0~10 | 0~10,0~5 |
| Output Voltage | 12, 24 | 12, 48 | 24, 12 | 24, 48 | 48, 12 | 48, 24 | 5, 12 | 5, 24 |
| Output Voltage Options | Dual | Dual | Dual | Dual | Dual | Dual | Dual | Dual |
| DC output adjustment | CH1 -5%~+10% via pot. | CH1 -5%~+10% via pot. | CH1 -5%~+10% via pot. | CH1 -5%~+10% via pot. | CH1 -5%~+10% via pot. | CH1 -5%~+10% via pot. | CH1 -5%~+10% via pot. | CH1 -5%~+10% via pot. |
| Dimensions | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 |
| Working Temperature | -20~+70°C | |||||||
| Safety Standards | UL60950-1, TUV EN60950-1 approved | |||||||
| EMC Standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2 | |||||||
