MEAN WELL

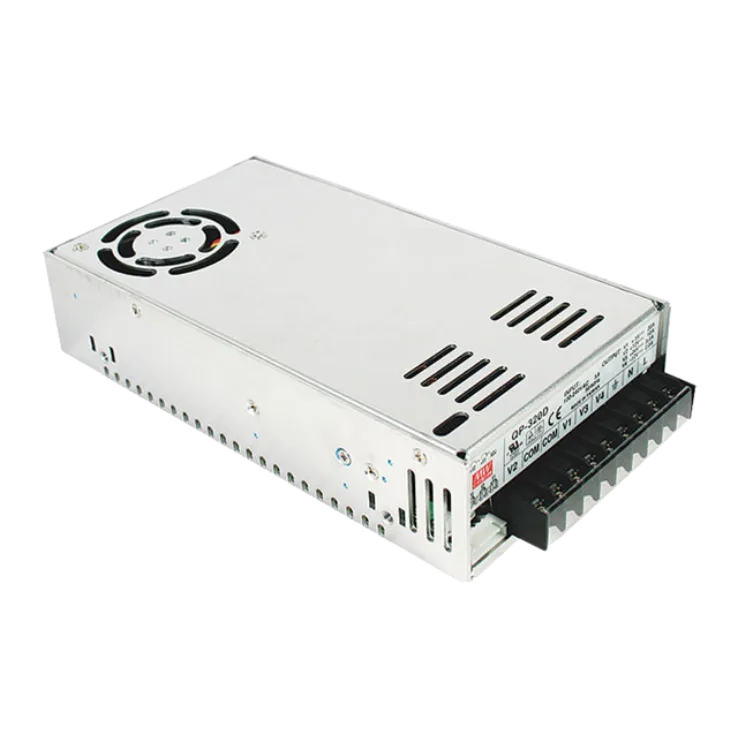

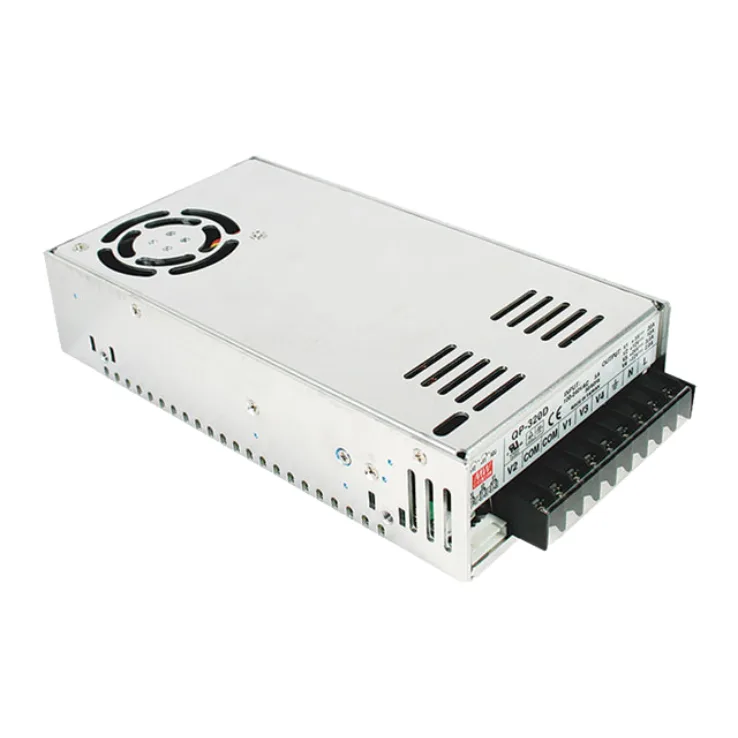

QP-320 Series Enclosed Power Supplies 320W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
QP-320 Series Features:
Universal AC input / Full range
Protections: Short circuit/ Overload/ Over voltage/ Over Temperature
Other features:
- PF>0.98@115VAC; >0.95@230VAC
- Over temperature protection option
- Forced air cooling by built-in DC fan
- 100% full load burn-in test
- 3 years warranty
| Wattage | 320 | 320 |
|---|---|---|
| Input Voltage | 90~264VAC, 127~370VDC | 90~264VAC, 127~370VDC |
| Output Current | 2.5~20, 0.0~10, 0.2~5.0, 0.2~2.0 | 2.5~20, 0.0~10, 0.2~5.0, 0.2~1.6 |
| Output Voltage | 5, 12, 24, -12 | 5, 15, 24, -15 |
| Output Voltage Options | Quad | Quad |
| DC output adjustment | CH1&2 -5%~+10% rated output voltage | CH1&2 -5%~+10% rated output voltage |
| Dimensions | 215 x 115 x 50 | 215 x 115 x 50 |
| Working Temperature | -20~+60°C | |
| Safety Standards | UL60950-1, TUV EN60950-1 approved | |
| EMC Standards | EN55022 class B, EN6100-3-2,3, EN61000-4-2,3,4,5,6,8,11 | |
