MEAN WELL

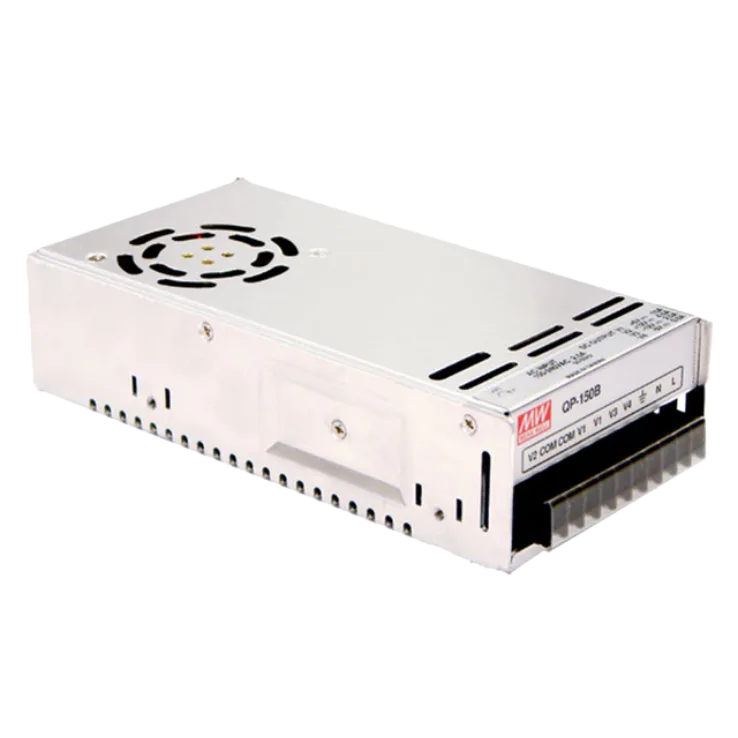

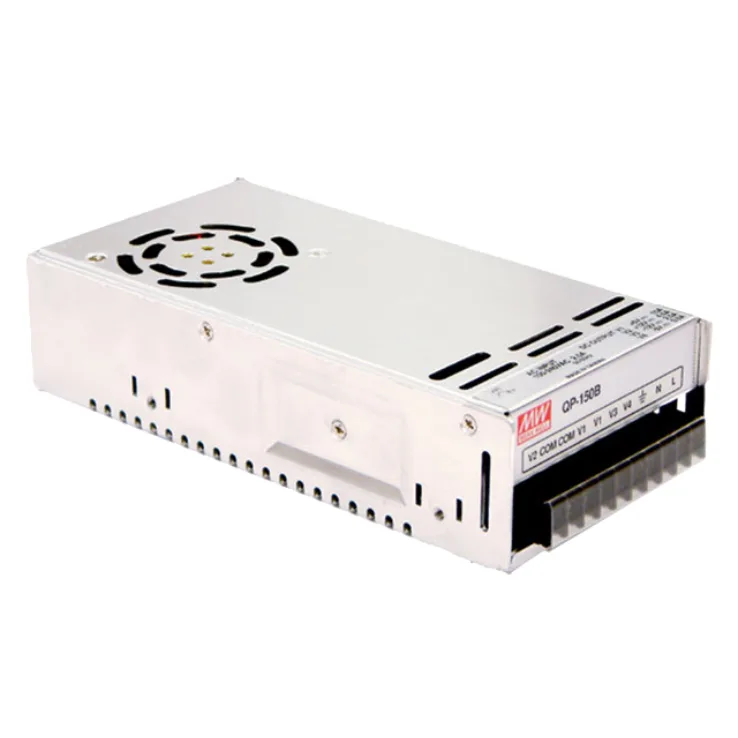

QP-150 Series Enclosed Power Supplies 150W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
QP-150 Series Features:
Universal AC input / Full range
Protections: Short circuit/ Overload/ Over voltage/ Over Temperature
Other features:
- PF>0.98@115VAC; >0.95@230VAC
- Forced air cooling by built-in DC fan
- Over temperature protection option
- 100% full load burn-in test
- 3 years warranty
| Wattage | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
|---|---|---|---|---|---|---|---|---|
| Input Voltage | 90~264VAC; 127~370VDC | 90~264VAC; 127~370VDC | 90~264VAC; 127~370VDC | 90~264VAC; 127~370VDC | 90~264VAC; 127~370VDC | 90~264VAC; 127~370VDC | 90~264VAC; 127~370VDC | 90~264VAC; 127~370VDC |
| Output Current | 3.0~15 / 0.0~15 / 0.4~5.0 / 0.0~1.0 | 3.0~15 / 0.0~15 / 0.4~5.0 / 0.0~1.0 | 3.0~15 / 0.0~15 / 0.4~5.0 / 0.0~1.0 | 3.0~15 / 0.0~15 / 0.3~3.0 / 0.0~1.0 | 3.0~15 / 0.4~5.0 / 0.3~2.0 / 0.0~1.0 | 3.0~15 / 0.4~4.0 / 0.3~2.0 / 0.0~1.0 | 3.0~15 / 0.0~5.0 / 0.4~3.0 / 0.0~1.0 | 3.0~15 / 0.0~5.0 / 0.4~3.0 / 0.0~1.0 |
| Output Voltage | 5, 3.3, 12, -5 | 5, 3.3, 12, -12 | 5, 3.3, 15, -15 | 5, 3.3, 24, -12 | 5, 12, -12, -5 | 5, 15, -15, -5 | 5, 12, 24, -12 | 5, 15, 24, -15 |
| Output Voltage Options | Quad | Quad | Quad | Quad | Quad | Quad | Quad | Quad |
| DC output adjustment | CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F) | CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F) | CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F) | CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F) | CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F) | CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F) | CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F) | CH1: -5%~+10% rated output voltage (CH1&2 for QP100/150-3x, QP100/150-D/F) |
| Dimensions | 199 x 99 x 50 | 199 x 99 x 50 | 199 x 99 x 50 | 199 x 99 x 50 | 199 x 99 x 50 | 199 x 99 x 50 | 199 x 99 x 50 | 199 x 99 x 50 |
| Working Temperature | -25~+70°C | |||||||
| Safety Standards | UL60950-1, TUV EN60950-1 approved | |||||||
| EMC Standards | EN55022 class B, EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11 | |||||||
