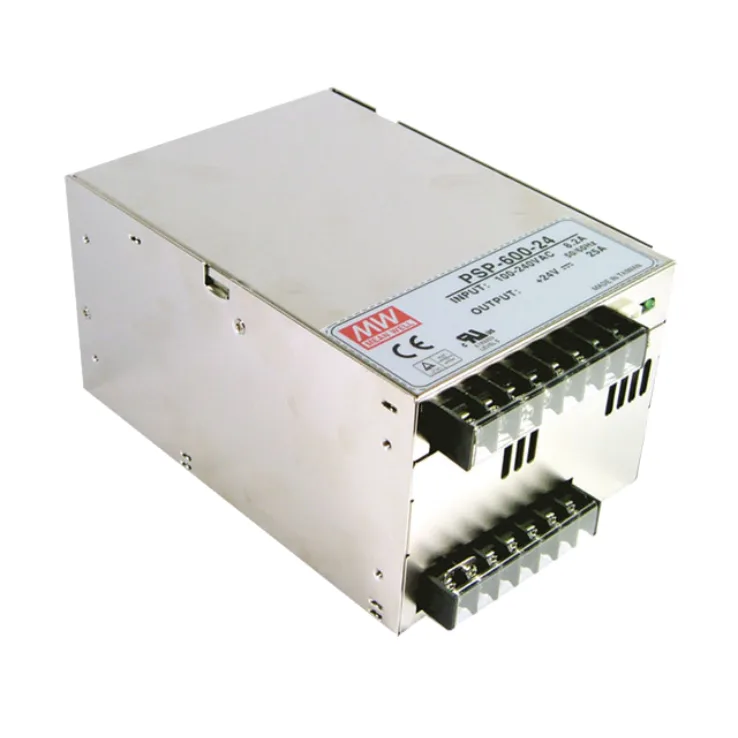

PSP-600 Series Enclosed Power Supplies 600W

PSP-600 Series Features:

Universal AC input/ Full range

PF >0.99@115VAC; >0.95@230VAC

Protections: Short circuit/ Overload/ Over voltage/ Over Temp.

Other features:

Spec	PSP-600-5	PSP-600-12	PSP-600-13.5	PSP-600-15	PSP-600-24	PSP-600-27	PSP-600-48
Wattage	600	600	600	600	600	600	600
Input Voltage	88~264VAC; 124~370VDC	88~264VAC; 124~370VDC	88~264VAC; 124~370VDC	88~264VAC; 124~370VDC	88~264VAC; 124~370VDC	88~264VAC; 124~370VDC	88~264VAC; 124~370VDC
Output Current	0~80.0	0~50.0	0~44.5	0~40.0	0~25.0	0~22.2	0~12.5
Output Voltage	5	12	13.5	15	24	27	48
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	+/-10% rated output voltage	+/-10% rated output voltage	+/-10% rated output voltage	+/-10% rated output voltage	+/-10% rated output voltage	+/-10% rated output voltage	+/-10% rated output voltage
Dimensions	170 x 120 x 93	170 x 120 x 93	170 x 120 x 93	170 x 120 x 93	170 x 120 x 93	170 x 120 x 93	170 x 120 x 93
Working Temperature	-10~+60°C (refer to output derating curve)
Safety Standards	UL60950-1, TUV EN60950-1 approved
EMC Standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
