MEAN WELL

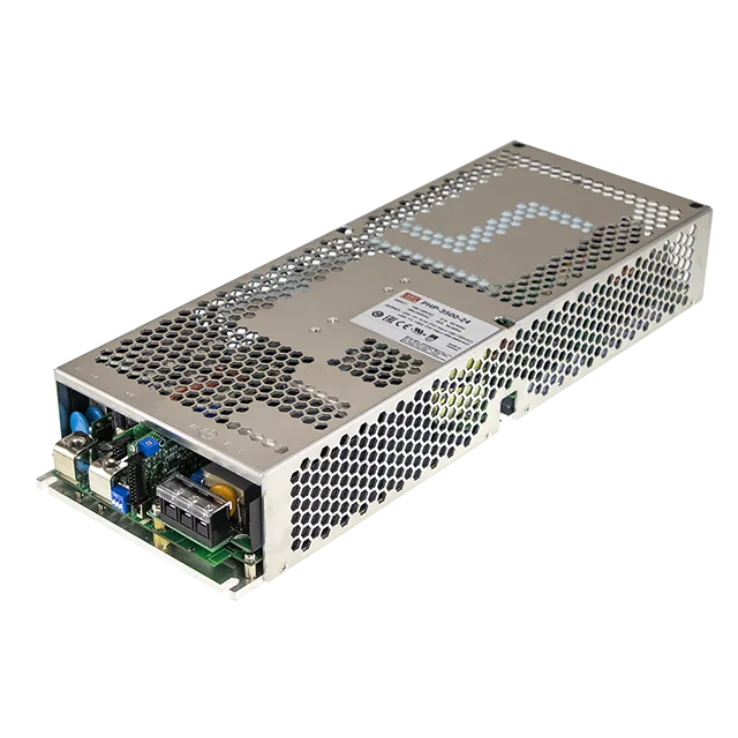

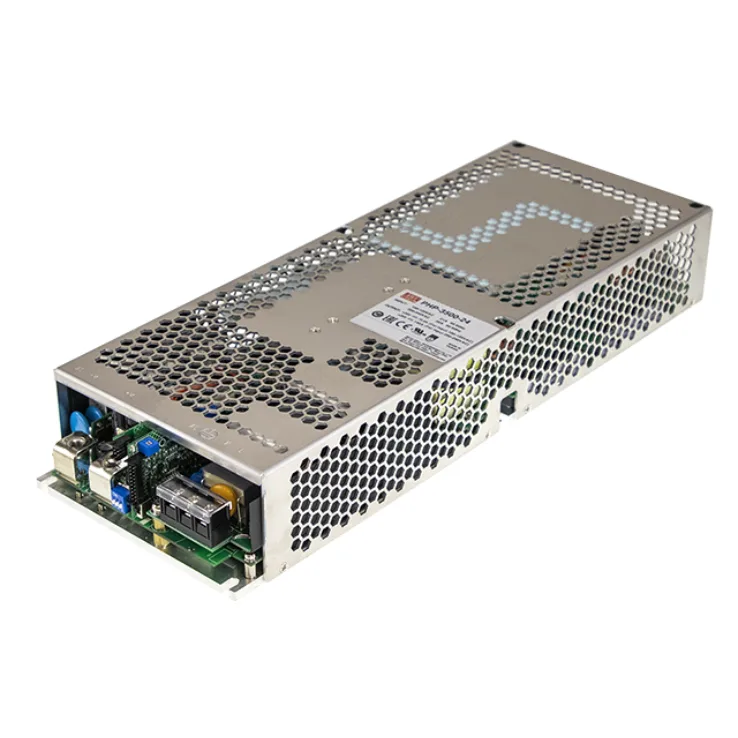

PHP-3500 Series Enclosed Power Supplies 3500W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
PHP-3500 Series Features:
Slim and Low profile (60mm)
Fanless design, cooling by water conductionn
Other features:
- Built-in active PFC function
- Output voltage and constant current level programmable
- Protections: Short circuit / Overload /Over voltage / Over temperature
- Built-in PMBus communication protocol, CANbus optional
- Optional cold plate for quick implemenatation
- 5 years warranty
| Wattage | 3500 | 3500 |
|---|---|---|
| Input Voltage | 90-264VAC, 250-370VDC | 90-264VAC, 250-370VDC |
| Output Current | 145A | 73A |
| Output Voltage | 24 | 48 |
| Output Voltage Options | Single | Single |
| DC output adjustment | 24-28.8V | 48-57.6V |
| Dimensions | 380 x 141.4 x 60 | 380 x 141.4 x 60 |
| Working Temperature | -30 - +70°C | |
| Safety Standards | UL62368-1,TUV EN62368-1,EAC TP TC 004 approved ; design refers to EN61558-1, EN60335-1 | |
| EMC Standards | EN55032(CISPR32), EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 | |
