MEAN WELL MEAN WELL logo

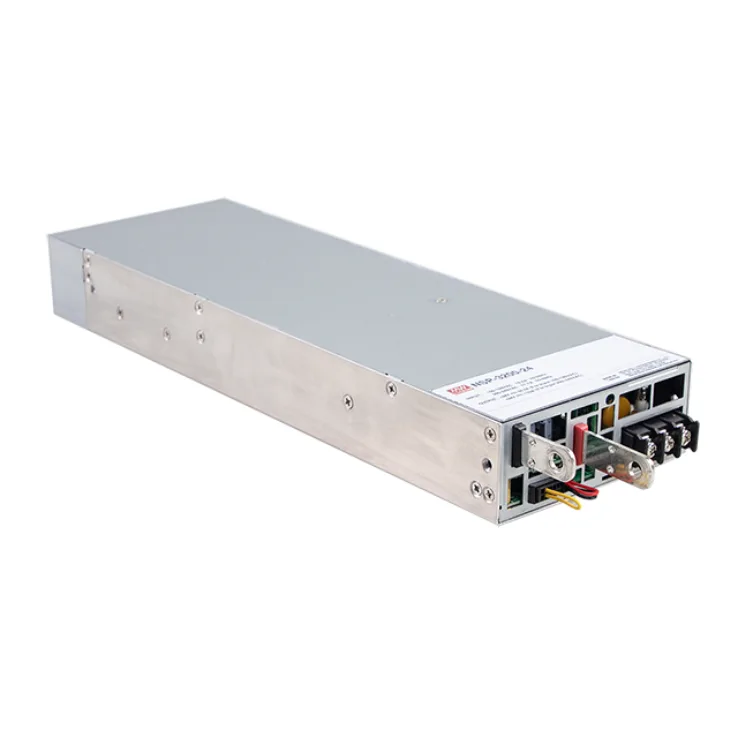

NSP-3200 Series Enclosed Power Supplies 3192–3216W

Download Datasheet
Models:
  • NSP-3200-24
  • NSP-3200-48
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

NSP-3200 Series Features:

NSP-3200 is a 3.2KW single output enclosed type AC/DC power supply with 1U low profile and a high power density up to 37W/inch.

Features:

  • Universal AC input/Full range
  • Built-in active PFC function
  • High efficiency up to 94.5%
  • Forced air cooling by built-in DC fan
  • Output voltage level programmable
  • Protections: short circuit/ overload/over voltage/over temperature
  • Design refer to SEMI F47
  • Optional conformal coating
  • 5 years warranty
Wattage 3192 3216
Input Voltage 90~264VAC 90~264VAC
Output Current 133 67
Output Voltage 24 48
Dimensions 325.8x107x41mm 325.8x107x41mm
Working Temperature -40~85°C
Safety Standards UL62368-1, CSA C22.2, No.62368-1, TUV BS EN/EN623681, EAC TP TC 004 approved
EMC Standards BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-2-6, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11
