MEAN WELL

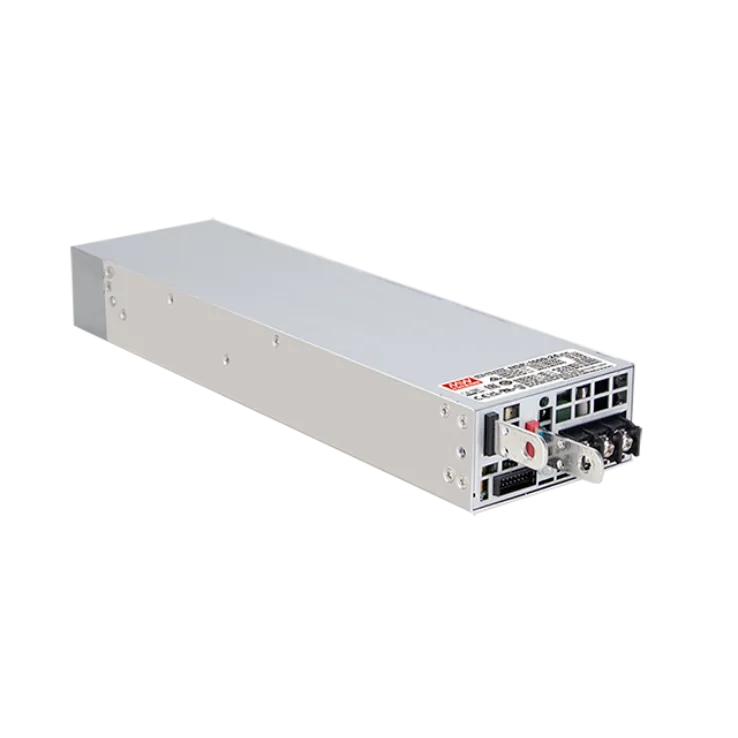

NSP-1600 Enclosed Power Supplies 1500–1608W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
NSP-1600 Features:
NSP-1600 is a 1.6KW single output enclosed type AC/DC power supply with a 1U low profile and a high power density up to 20W/inch.
Features:
- Universal AC input/full range
- Built-in active PFC function
- High efficiency up to 92%
- Forced air cooling by built-in DC fan
- Output voltage level programmable
- Built-in remote ON-OFF control/remote sense/ auxiliary power/DC OK signal
- Protections: short circuit/ overload/ over voltage/ over temperature
- Design refer to SEMI F47
- 5 years warranty
| Wattage | 1500 | 1608 | 1602 | 1608 |
|---|---|---|---|---|
| Input Voltage | 90~2646VAC | 90~264VAC | 90~264VAC | 90~264VAC |
| Output Current | 125 | 67 | 44.5 | 33.5 |
| Output Voltage | 12 | 24 | 36 | 48 |
| Dimensions | 300x85x41mm | 300x85x41mm | 300x85x41mm | 300x85x41mm |
| Working Temperature | -20~70°C | |||
| Safety Standards | UL62368-1, CAN/CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS143362, AS/NZ62368.1, EAC TP TC 004 approved | |||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||
