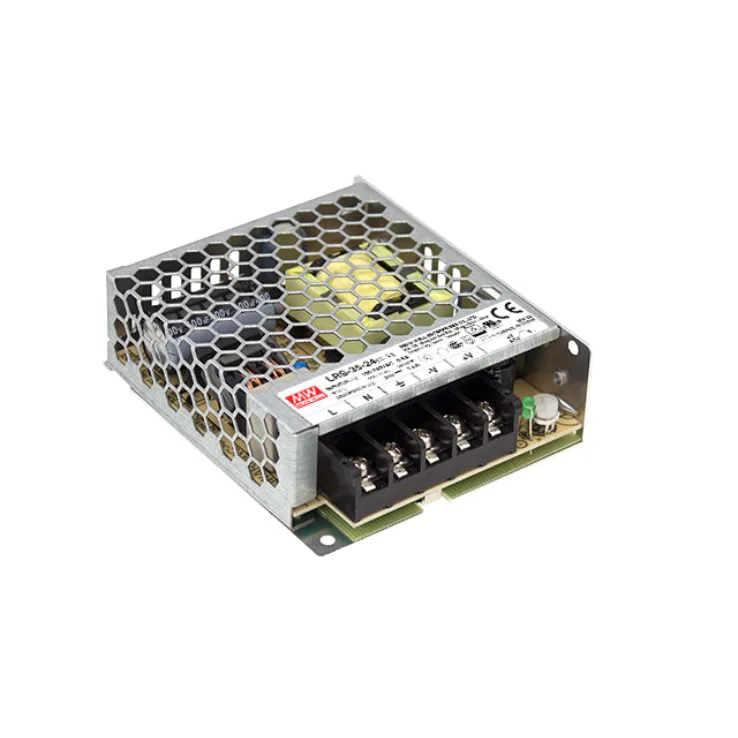

LRS-35 Series Enclosed Power Supplies 35–38.4W

LRS-35 Series Features:

No Load power consumption <0.2W

Miniature size and 1U low profile

Protections: Short circuit/ Overload/ Over voltage.

Other features:

Universal AC Input/ Full range
Withstand 300VAC surge input for 5 second
No load power consumption <0.2W
High operating temperature up to 70°C
Cooling by free air convection
Compliance to IEC/EN 60335-1 (PD3) and IEC/EN61558-1, -2-16 for household appliances
Operating altitude up to 5000 meters
Withstand 5G vibration test
High efficiency, Long life and high reliability
LED indicatior for power on
100% full load burn-in test
3 years warranty

Spec	LRS-35-5	LRS-35-12	LRS-35-15	LRS-35-24	LRS-35-36	LRS-35-48
Wattage	35	36	36	36	36	38.4
Input Voltage	85~264 VAC, 120~373 VDC	85~264 VAC, 120~373 VDC	85~264 VAC, 120~373 VDC	85~264 VAC, 120~373 VDC	85~264 VAC, 120~373 VDC	85~264 VAC, 120~373 VDC
Output Current	0~7.0	0~3.0	0~2.4	0~1.5	0~1	0~0.8
Output Voltage	5	12	15	24	36	48
Output Voltage Options	Single	Single	Single	Single	Single	Single
DC output adjustment	4.5~5.5	10.2~13.8	13.5~18	21.6~28.8	32.4~39.6	43.2~52.8
Dimensions	99 x 82 x 30	99 x 82 x 30	99 x 82 x 30	99 x 82 x 30	99 x 82 x 30	99 x 82 x 30
Working Temperature	-20~+70°C
Safety Standards	UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1/-2-16,CCC GB4943 Approved
EMC Standards	EN55022, GB9254 Class B, EN55014, EN61000-3-2,-3, EN61000-4-2,-3,4,5,6,8,11, EN61000-6-2 (EN50082-2), Heavy Industry level, Criteria A
