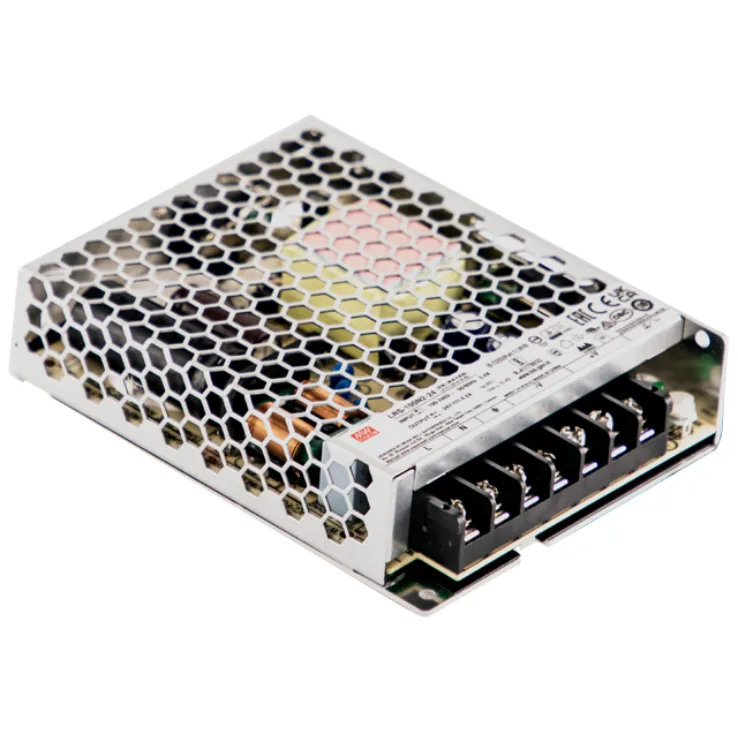

LRS-100N2 Enclosed Power Supplies 100.8–102W

Download Datasheet
Models:
  • LRS-100N2-12
  • LRS-100N2-24
  • LRS-100N2-36
  • LRS-100N2-48
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

LRS-100N2 Features:

LRS-100N2 series is a 100W single-output enclosed type power supply with 30mm of low profile design.

Features
Universal AC input / Full range
Withstand 300VAC surge input for 5 second
Up to 200% peak power capability
Protections: Short circuit/Overload/Over voltage
Cooling by free air convection
Miniature size and 1U low profile
Compliance to IEC/BS EN/EN61558-1 and 62368-1
Operating altitude up to 4000 meters
Withstand 5G vibration test
LED indicator for power on
No load power consumption<0.5W
Over voltage category III (OVC III)
High operating temperature up to 70℃
High efficiency, long life and reliability
3 years warranty

Wattage 102 100.8 100.8 100.8
Input Voltage 85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) 85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) 85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage) 85 ~ 264VAC 120 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
Output Current 0 ~ 8.5A 0 ~ 4.2A 0~2.8A 0 ~ 2.1A
Output Voltage 12V 24V 36V 48V
Dimensions 129*97*30mm (L*W*H) 129*97*30mm (L*W*H) 129*97*30mm (L*W*H) 129*97*30mm (L*W*H)
Working Temperature -30 ~ +70℃
Safety Standards UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN61558-1 2 16 Q .1,BSMI CNS14336-1, /- - ,C C GB4943 EAC TP TC 004,S/NZS62368.1(by CB), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved Designed refer to AS/NZS 61558.1/2.16, AS/NZS 62368.1
EMC Standards Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2 Class A(≤80% Load), BS EN/EN61000-3-3, BSMI CNS13438, EAC TP TC 020
