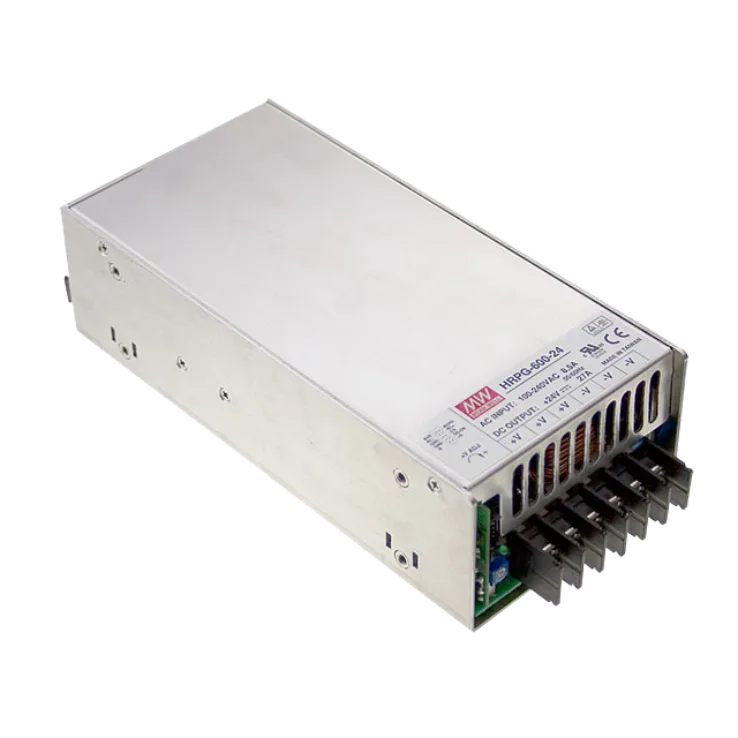

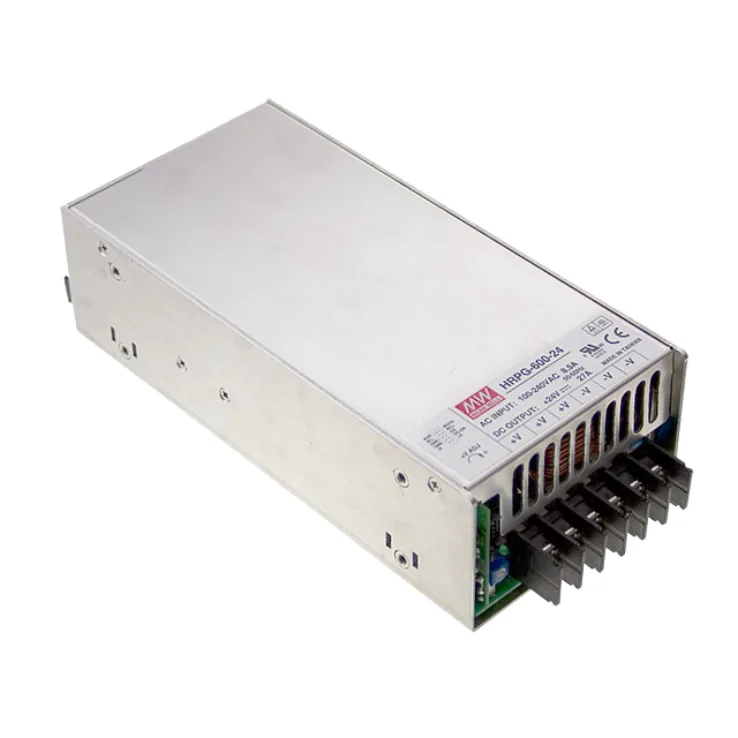

Mean Well HRPG-600 Series Enclosed Power Supplies 600W

Download Datasheet
Models:
  • HRPG-600-12
  • HRPG-600-15
  • HRPG-600-24
  • HRPG-600-3.3
  • HRPG-600-36
  • HRPG-600-48
  • HRPG-600-5
  • HRPG-600-7.5
Manufacturer: Mean Well
Type: Enclosed Power Supplies

HRPG-600 Series Features:

No load power consumption<0.75W

Protections: Short circuit/ Overload/ Over voltage/ Over temp

Other Features:

  • Universal AC input/ full range
  • Withstand 300 VAC surge input for 5 seconds
  • Built-in active PFC function
  • Built-in costant current limiting circuit
  • Built in remote ON/OFF control& 5V / 0.3A standby output
  • Built-in remote sense function
  • Built-in DC OK signal
  • Forced air cooling by built-in ~DC fan
  • 100% full load Burn-in test
  • 5 years warranty
Wattage 600 600 600 600 600 600 600 600
Input Voltage 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC
Output Current 0~53 0~43 0~27 0~120 0~17.5 0~13 0~80 0~80
Output Voltage 12 15 24 3.3 36 48 5 7.5
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage
Dimensions 218 x 105 x 63.5 218 x 105 x 63.5 218 x 105 x 63.5 218 x 105 x 63.5 218 x 105 x 63.5 218 x 105 x 63.5 218 x 105 x 63.5 218 x 105 x 63.5
Working Temperature -40~+70B0C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
