MEAN WELL

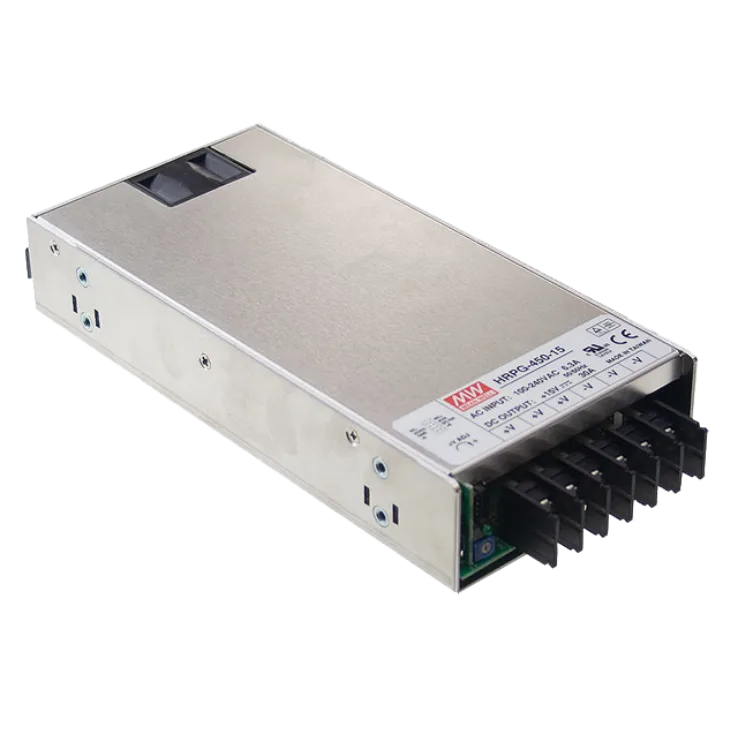

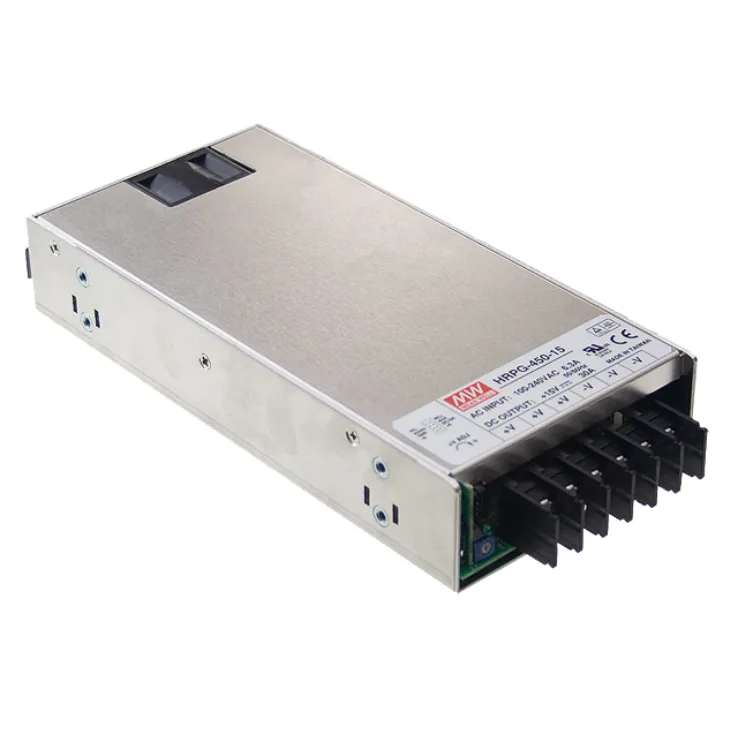

HRPG-450 Series Enclosed Power Supplies 450W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
HRPG-450 Series Features:
No load power consumption <0.5W
Protections: Short circuit/ Overload/ Over voltage/ Over temp
Features:
- Universal AC input/ full range
- Withstand 300 VAC surge input for 5 seconds
- Built-in active PFC function
- Built-in costant current limiting circuit
- Built-in remote sense function
- Built in remote ON/OFF control and 5V/ 0.3A standby output
- Built-in DC OK signal
- Forced air cooling by built-in ~DC fan
- 1U low profile
- 100% full load Burn-in test
- 5 years warranty
| Wattage | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
|---|---|---|---|---|---|---|---|---|
| Input Voltage | 85-264VAC, 120-370VDC | 85-264VAC,120-370VDC | 85-264VAC,120-370VDC | 85-264VAC,120-370VDC | 85-264VAC,120-370VDC | 85-264VAC, 120-370VDC | 85-264VAC, 120-370VDC | 85-264VAC, 120-370VDC |
| Output Current | 0~90 | 0~90 | 0~60 | 0~37.5 | 0~30 | 0~18.8 | 0~12.5 | 0~9.5 |
| Output Voltage | 3.3 | 5 | 7.5 | 12 | 15 | 24 | 36 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single |
| DC output adjustment | +/- 15% rated output voltage | +/- 15% rated output voltage | +/- 15% rated output voltage | +/- 15% rated output voltage | +/- 15% rated output voltage | +/- 15% rated output voltage | +/- 15% rated output voltage | +/- 15% rated output voltage |
| Dimensions | 218 x 105 x 41 | 218 x 105 x 41 | 218 x 105 x 41 | 218 x 105 x 41 | 218 x 105 x 41 | 218 x 105 x 41 | 218 x 105 x 41 | 218 x 105 x 41 |
| Working Temperature | -40~+70°C (refer to output derating curve) | |||||||
| Safety Standards | UL60950-1, TUV EN60950-1 approved | |||||||
| EMC Standards | EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level | |||||||
