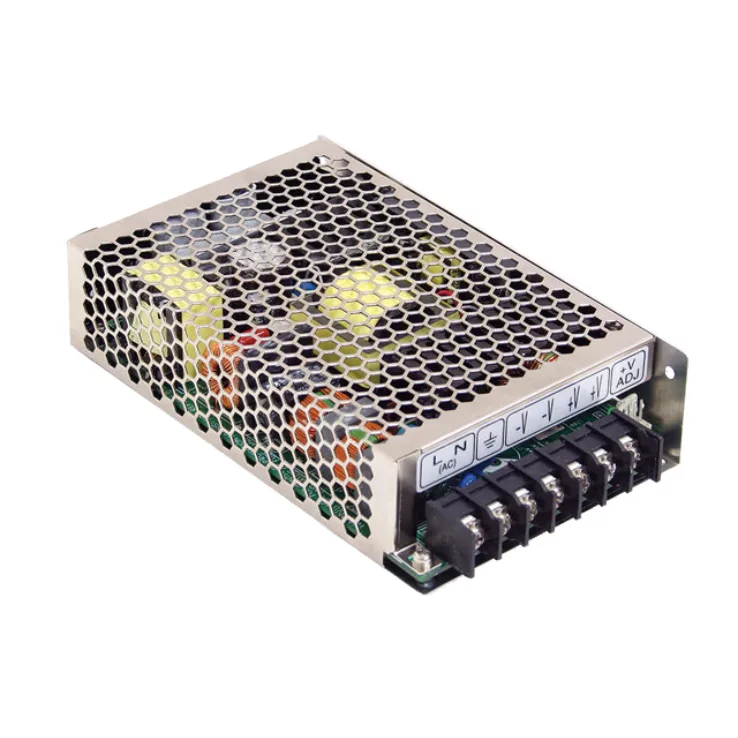

HRPG-150 Series Enclosed Power Supplies 99–158.4W

Download Datasheet
Models:
  • HRPG-150-3.3
  • HRPG-150-5
  • HRPG-150-7.5
  • HRPG-150-12
  • HRPG-150-15
  • HRPG-150-24
  • HRPG-150-36
  • HRPG-150-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

HRPG-150 Series Features:

Built-in active PFC function, PF >0.95

Built in remote sense function

1U low profile 38mm

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • Universal AC input/ Full range
  • High efficiency up to 88%
  • Withstand 300V AC surge input for 5 seconds
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Built-in remote ON-OFF control
  • Stand by 5V@ 0.3A
  • No load power consumption<0.5W
  • 5 years warranty
Wattage 99 130 150 156 150 156 154.8 158.4
Input Voltage 85~364VAC 120~370VDC 85~364VAC 120~370VDC 85~364VAC 120~370VDC 85~364VAC 120~370VDC 85~364VAC 120~370VDC 85~364VAC 120~370VDC 85~364VAC 120~370VDC 85~364VAC 120~370VDC
Output Current 0~30A 0~30A 0~30A 0~30A 0~30A 0~30A 0~30A 0~30A
Output Voltage 3.3V 5V 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment 2.8~3.8V 4.3~5.8V 2.8~3.8V 2.8~3.8V 2.8~3.8V 2.8~3.8V 2.8~3.8V 2.8~3.8V
Dimensions 159x 97x 38 159x 97x 38 159x 97x 38 159x 97x 38 159x 97x 38 159x 97x 38 159x 97x 38 159x 97x 38
Working Temperature -40~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22)Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, heavy industry level, criteriaA
