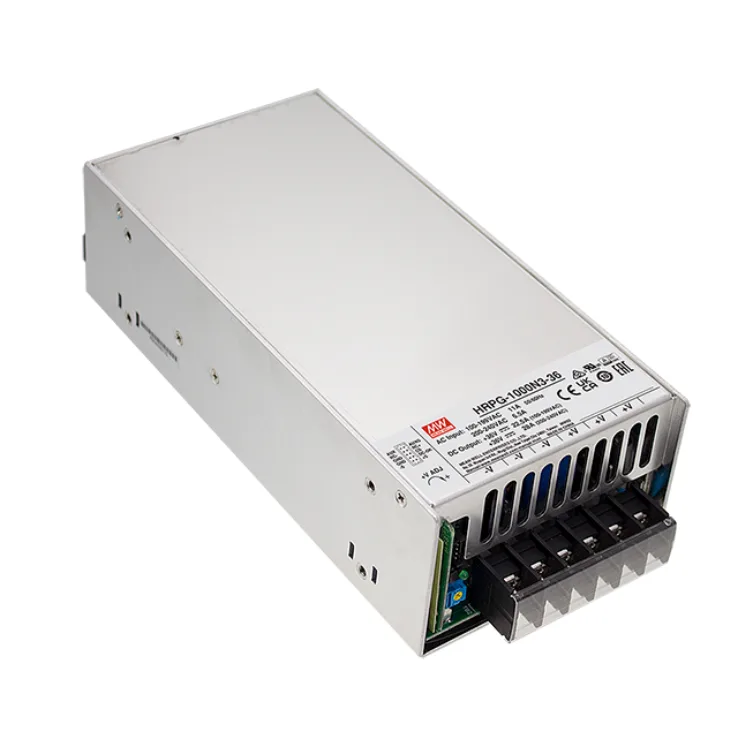

HRPG-1000N3 Enclosed Power Supplies 1000W

Download Datasheet
Models:
  • HRPG-1000N3-12
  • HRPG-1000N3-24
  • HRPG-1000N3-36
  • HRPG-1000N3-48
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

HRPG-1000N3 Features:

HRPG-1000N3 series is a 1000W single output AC/DC with ultra-high peak power supply.

Features
Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 94%
Withstand 300VAC surge input for 5 seconds
Up to 320% peak power capability
Protections: Short circuit / Overload / Over voltage / Over temperature
Built-in cooling fan ON-OFF control
Current sharing up to 4000W (3+1)
Built-in DC OK signal
Built-in remote ON-OFF control
Standby 5V@0.3A
Built-in remote sense function
No load power consumption<0.85W (Note.6)
5 years warranty

Wattage 1000 1000 1000 1000
Input Voltage 90 ~ 264VAC(300VAC for 5 sec.) 127 ~ 370VDC 90 ~ 264VAC(300VAC for 5 sec.) 127 ~ 370VDC 90 ~ 264VAC(300VAC for 5 sec.) 127 ~ 370VDC 90 ~ 264VAC(300VAC for 5 sec.) 127 ~ 370VDC
Output Current 80A 42A 28A 21A
Output Voltage 12V 24V 36V 48V
Dimensions 218*105*61.5mm 218*105*61.5mm 218*105*61.5mm 218*105*61.5mm
Working Temperature -40 ~ +70℃ -40 ~ +70C
Safety Standards UL62368-1, CAN/CSA C22.2 , TUV EN62368-1, , EAC TP TC 004 approved
EMC Standards BS EN/EN55032 (CISPR32) , BS EN/EN61000-3-2 , BS EN/EN61000-3-3 BS EN/EN55032 (CISPR32), BS EN/EN61000-3-2 , BS EN/EN61000-3-3
