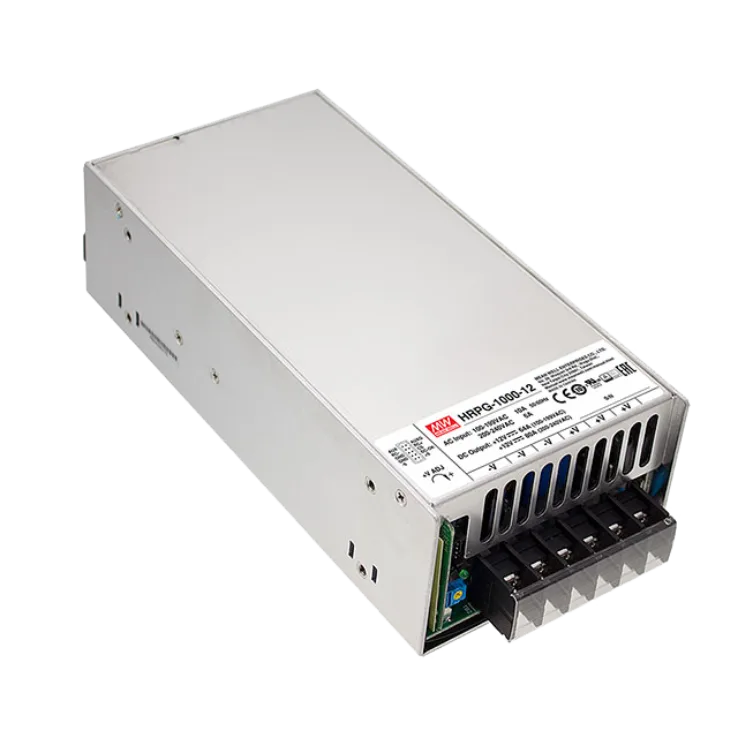

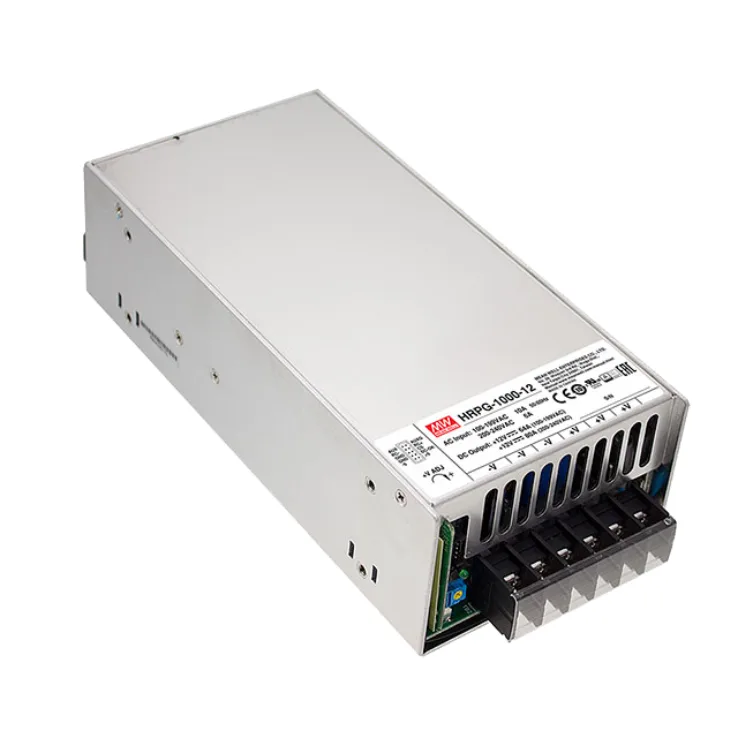

HRPG-1000 Series Enclosed Power Supplies 960–1008W

Download Datasheet
Models:
  • HRPG-1000-12
  • HRPG-1000-15
  • HRPG-1000-24
  • HRPG-1000-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

HRPG-1000 Series Features:

Current sharing up to 4000W (3+1)

Built-in cooling fan ON-OFF control

Protections: Short circuit / Overload / Over voltage/Over temperature

Other features:

  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • Withstand 300VAC surge input for 5 seconds
  • High efficiency up to 94%
  • Standby 5V@0.3A
  • No load power consumption<0.75W
  • Built-in remote sense function
  • Built-in DC OK signal
  • 5 years warranty
Wattage 960 960 1008 1008
Input Voltage 90-264VAC 90-264VAC 90-264VAC 90-264VAC
Output Current 80A 64A 42A 21A
Output Voltage 12 15 24 48
Output Voltage Options Single Single Single Single
DC output adjustment 11-14V 14-17V 22-28V 46-56V
Dimensions 218x 105x 63.5 218x 105x 63.5 218x 105x 63.5 218x 105x 63.5
Working Temperature -40~+70°C
Safety Standards UL62368-1, TUV EN62368-1, EAC TP TC 004 approved
EMC Standards Compliance to EN55032 (CISPR32) EN61000-3-2,3 Compliance to EN55024, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11
