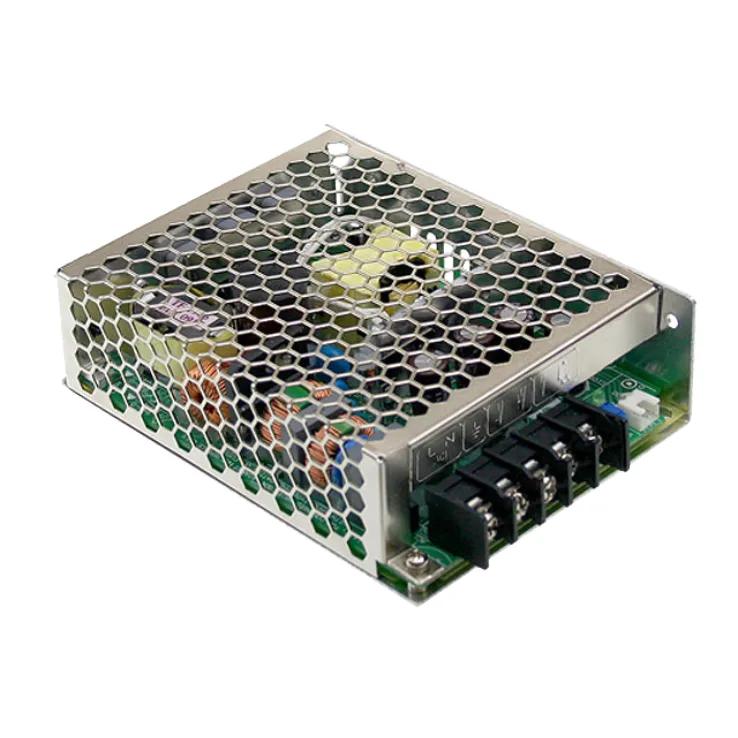

HRP-75 Series Enclosed Power Supplies 75W

Download Datasheet
Models:
  • HRP-75-3.3
  • HRP-75-5
  • HRP-75-7.5
  • HRP-75-12
  • HRP-75-15
  • HRP-75-24
  • HRP-75-36
  • HRP-75-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

HRP-75 Series Features:

No Load power consumption <0.5W

Built-in active PFC function

Protections: Short circuit/ Overload/ Over voltage/Over temp.

Other features:

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • Built-in constant current limiting circuit
  • Built in remote ON/OFF control
  • Cooling by free air
  • 1U low profile
  • LED indicator for power on
  • 100% full load burn-in test
  • 5 years Warranty
Wattage 75 75 75 75 75 75 75 75
Input Voltage 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC
Output Current 3.3V, 0-15A 5V,0-15A 0~10A 12V, 0-6.3A 15V, 0~5A 24V,0~3.2A
Output Voltage 3.3 5 7.5 12 15 24 36 48
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage
Dimensions 129 x 98 x 38 129 x 98 x 38 129 x 98 x 38 129 x 98 x 38 129 x 98 x 38 129 x 98 x 38 129 x 98 x 38 129 x 98 x 38
Working Temperature -40-+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
