MEAN WELL MEAN WELL logo

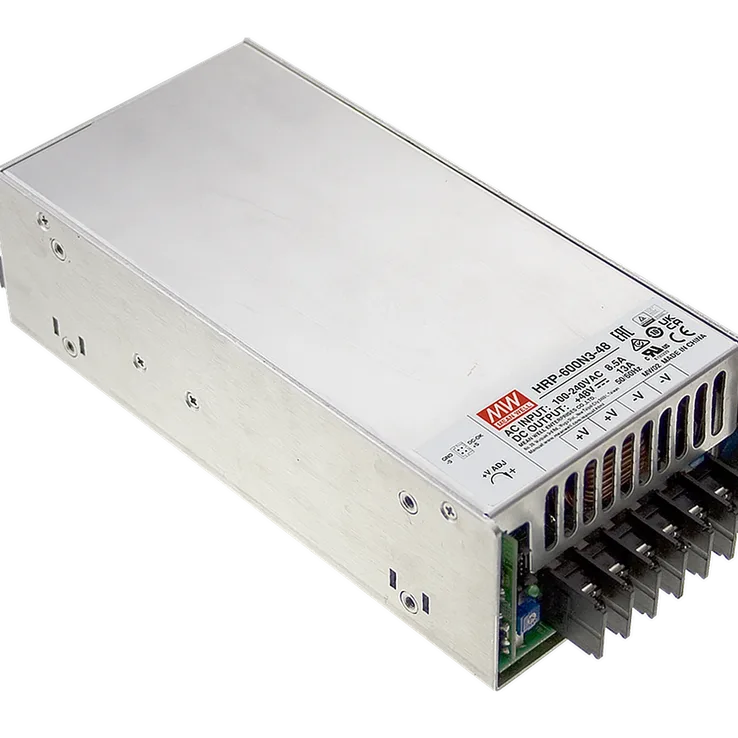

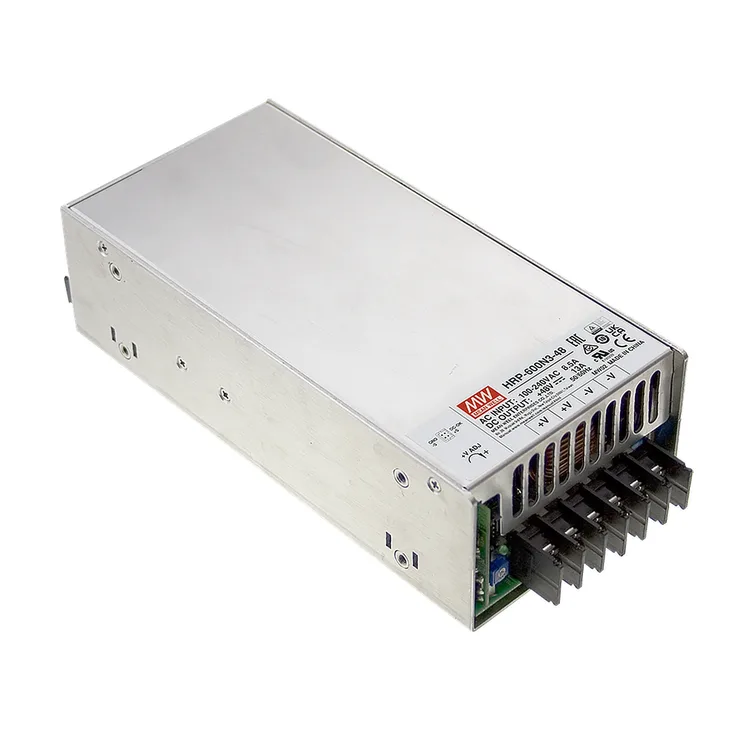

HRP-600N3 Series Enclosed Power Supplies 624–648W

Download Datasheet
Models:
  • HRP-600N3-12
  • HRP-600N3-24
  • HRP-600N3-36
  • HRP-600N3-48
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

HRP-600N3 Series Features:

HRP-600N is a 600W single output type AC/DC power supply.

Features:

  • Universal AC input/ Full range
  • Built-in active PFC function, PF>0.94
  • 250% peak power capability
  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit/ Overload/ Over voltage/ Over temperature
  • Built-in cooling fan ON-OFF control
  • Built-in DC OK signal
  • Built-in remote sense function
  • 5 years warranty
Wattage 636 648 630 624
Input Voltage 85~264VAC 85~264VAC 85~264VAC 85~264VAC
Output Current 53A 27A 17.5A 13A
Output Voltage 12V 24V 36V 48V
Output Voltage Options 10.2~13.8V 21.6~28.8V 28.8~39.6V 85~264VAC
Dimensions 218*105*61.5mm 218*105*61.5mm 218*105*61.5mm 218*105*61.5mm
Working Temperature -40~+70°C
Safety Standards UL62368-1, TUV EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved
EMC Standards EN55032, EN61000-3-2, EN61000-3-3
