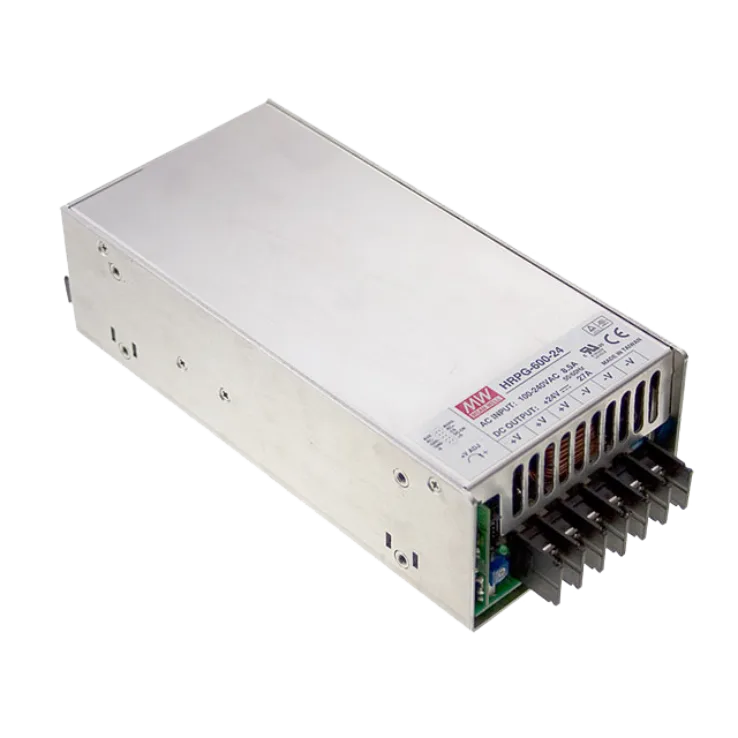

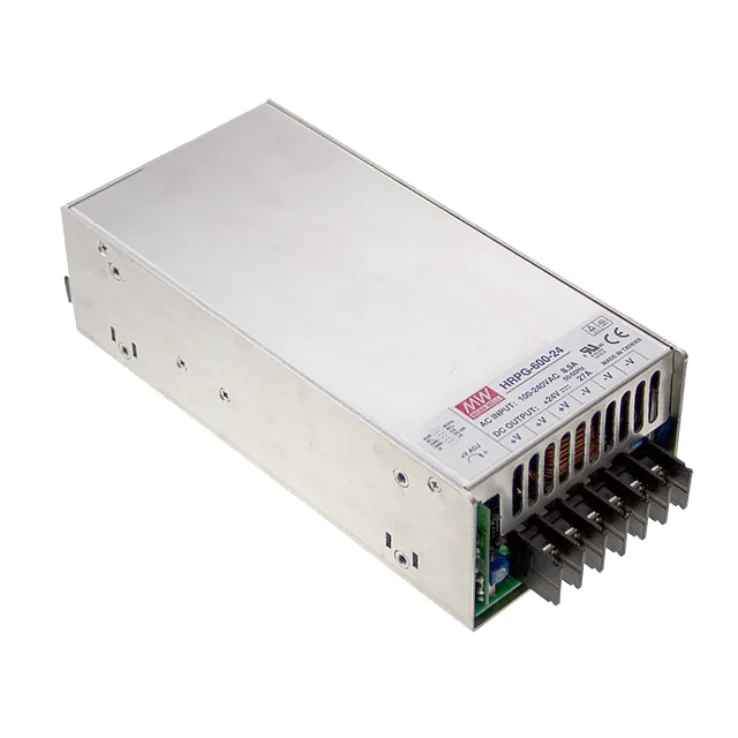

HRP-600 Series Enclosed Power Supplies 600W

Download Datasheet
Models:
  • HRP-600-3.3
  • HRP-600-5
  • HRP-600-7.5
  • HRP-600-12
  • HRP-600-15
  • HRP-600-24
  • HRP-600-36
  • HRP-600-48
Manufacturer: Mean Well
Type: Enclosed Power Supplies

HRP-600 Series Features:

Universal AC input/ full range

Protections: Short circuit/ Overload/ Over voltage/ Over temp

Other Features:

  • Withstand 300 VAC surge input for 5 seconds
  • Built-in active PFC function
  • Built-in costant current limiting circuit
  • Built-in remote sense function
  • Built-in DC OK signal
  • Forced air cooling by built-in ~DC fan
  • 100% full load Burn-in test
  • 5 years warranty
Wattage 600 600 600 600 600 600 600 600
Input Voltage 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC
Output Current 0~120 0~120 0~80 0~53 0~43 0~27 0~17.5 0~13
Output Voltage 3.3 5 7.5 12 15 24 36 48
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage +/- 15% rated output voltage
Dimensions 218 x 105 x 63.5 218 x 105 x 63.5 218 x 105 x 63.5 218 x 105 x 63.5 218 x 105 x 63.5 218 x 105 x 63.5 218 x 105 x 63.5 218 x 105 x 63.5
Working Temperature -40~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
