MEAN WELL

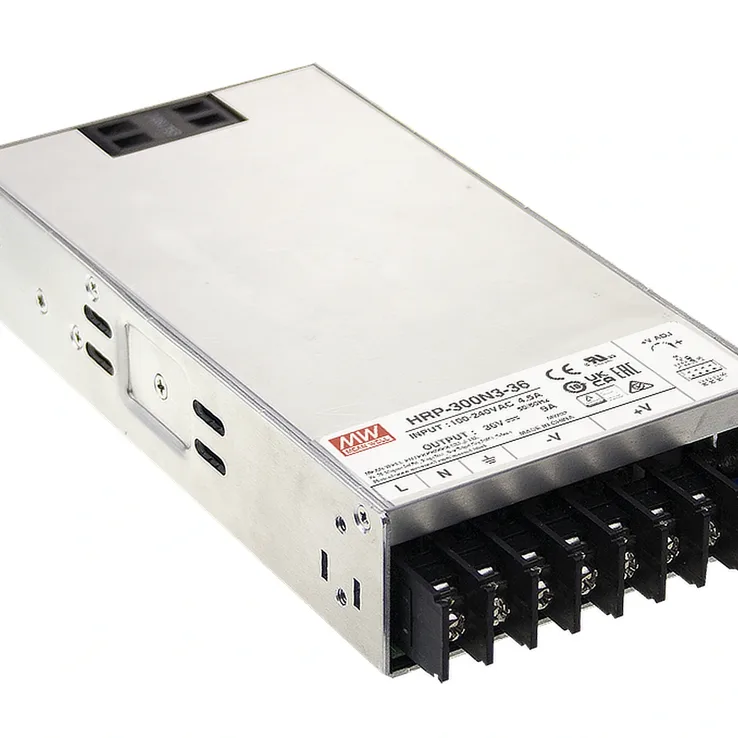

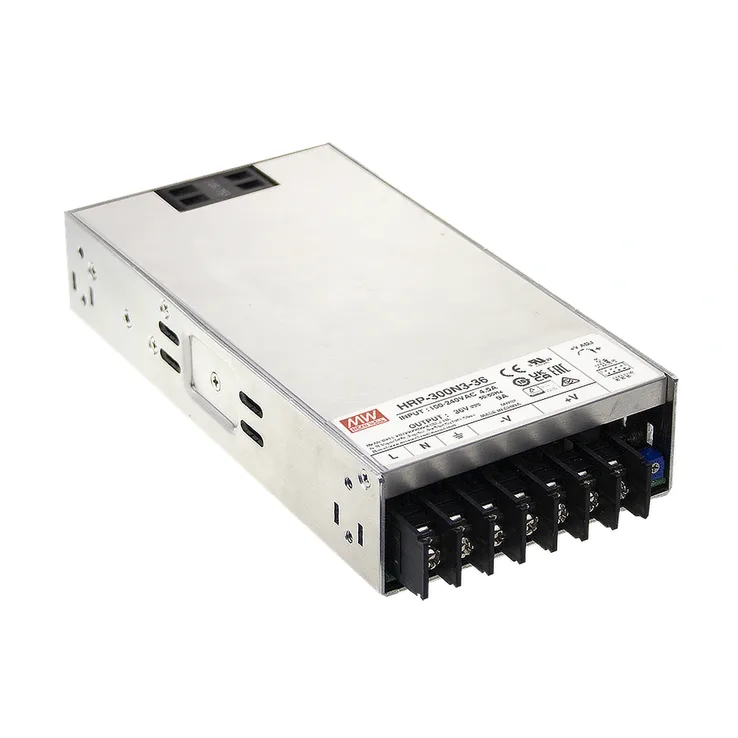

HRP-300N3 Series Enclosed Power Supplies 324–336W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
HRP-300N3 Series Features:
HRP-300N is a 300W single output type AC/DC power supply.
Features:
- Universal AC input/ Full range
- Built-in active PFC function, PF>0.95
- 250% peak power capability
- High efficiency up to 89%
- Withstand 300VAC surge input for 5 seconds
- Protections: Short circuit/ Overload/ Over voltage/ Over temperature
- 1U low profile 41mm
- Built-in cooling fan ON-OFF control
- Built-in DC OK signal
- Built-in remote sense function
- 5 years warranty
| Wattage | 324 | 336 | 324 | 336 |
|---|---|---|---|---|
| Input Voltage | 85~264VAC | 85~264VAC | 85~264VAC | 85~264VAC |
| Output Current | 27A | 14A | 9A | 7A |
| Output Voltage | 12V | 24V | 36V | 48V |
| Output Voltage Options | 10.2~13.8V | 21.6~28.8V | 28.8~39.6V | 40.8~55.2V |
| Dimensions | 199*105*41mm | 199*105*41mm | 199*105*41mm | 199*105*41mm |
| Working Temperature | -40~+70°C | |||
| Safety Standards | UL62368-1, TUV EN62368-1, EAC TP TC 004, AS/NZS 62368.1 approved | |||
| EMC Standards | EN55032, EN61000-3-2, EN61000-3-3 | |||
