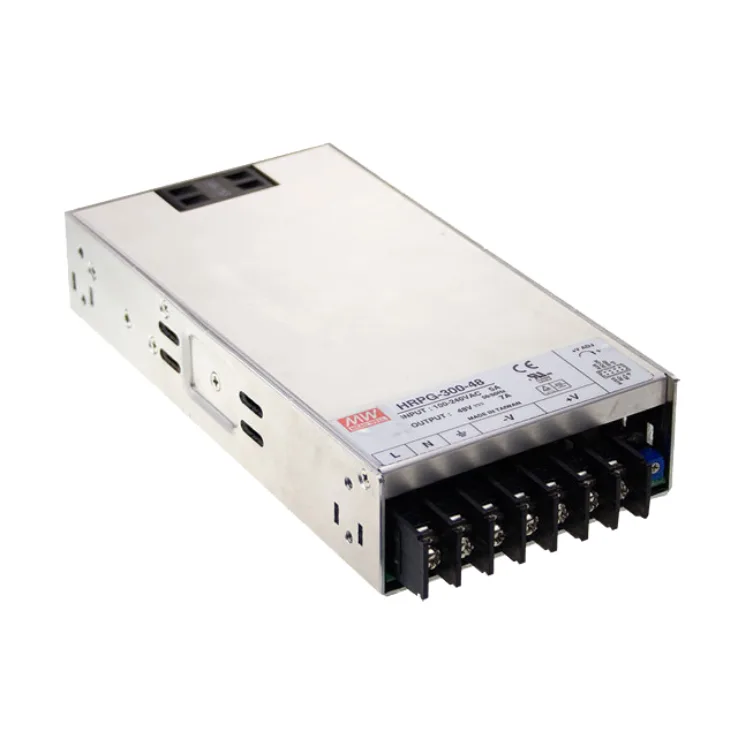

HRP-300 Series Enclosed Power Supplies 300W

HRP-300 Series Features:

1U low profile

Protections: Short circuit/ Overload/ Over voltage/ Over temp

Other features:

Spec	HRP-300-3.3	HRP-300-5	HRP-300-7.5	HRP-300-12	HRP-300-15	HRP-300-24	HRP-300-36	HRP-300-48
Wattage	300	300	300	300	300	300	300	300
Input Voltage	85-264VAC,120-370VDC	85-264VAC,120-370VDC	85-264VAC,120-370VDC	85-264VAC,120-370VDC	85-264VAC,120-370VDC	85-264VAC,120-370VDC	85-264VAC,120-370VDC	85-264VAC,120-370VDC
Output Current	0~60	0~60	0~40	0~27	0~22	0~14	0~9	0-7
Output Voltage	3.3	5	7.5	12	15	24	36	48
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	+/- 15% rated output voltage	+/- 15% rated output voltage	+/- 15% rated output voltage	+/- 15% rated output voltage	+/- 15% rated output voltage	+/- 15% rated output voltage	+/- 15% rated output voltage	+/- 15% rated output voltage
Dimensions	199 x 105 x 41	199 x 105 x 41	199 x 105 x 41	199 x 105 x 41	199 x 105 x 41	199 x 105 x 41	199 x 105 x 41	199 x 105 x 41
Working Temperature	-40~+70°C
Safety Standards	UL60950-1, TUV EN60950-1 approved
EMC Standards	EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
