MEAN WELL MEAN WELL logo

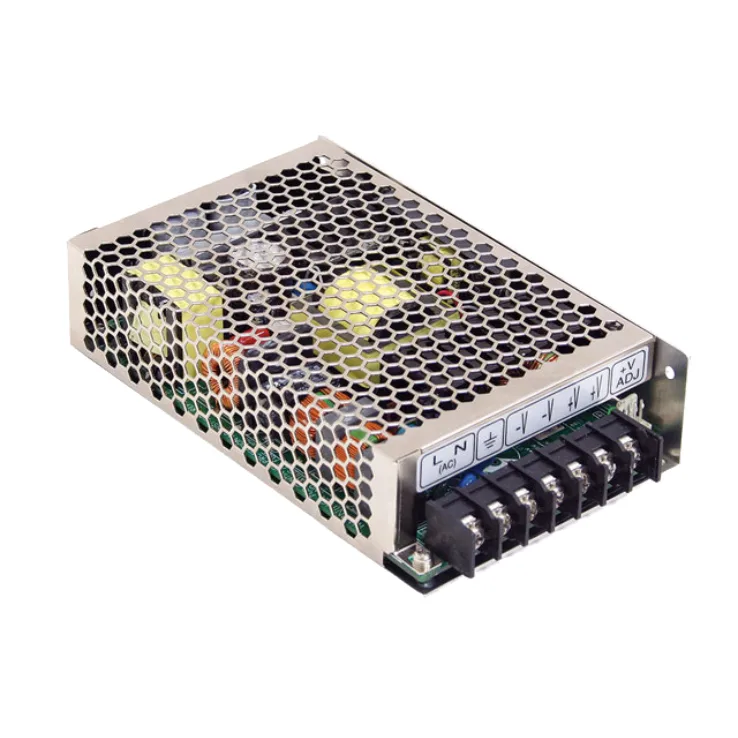

HRP-100 Series Enclosed Power Supplies 66–108W

Download Datasheet
Models:
  • HRP-100-3.3
  • HRP-100-5
  • HRP-100-7.5
  • HRP-100-12
  • HRP-100-15
  • HRP-100-24
  • HRP-100-36
  • HRP-100-48
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

HRP-100 Series Features:

No Load power consumption <0.5W

Protections: Short circuit/ Overload/ Over voltage/Over temp. (optional)

Other features:

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • built-in active PFC function
  • Built-in costant current limiting circuit
  • Built in remote ON/OFF control
  • cooling by free air
  • 1U low profile
  • LED indicator for power on
  • 100% full load burn-in test
  • 5 years Warranty



Wattage 66 85 101 102 105 108 104 106
Input Voltage 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC
Output Current 0~20A 0~17A 0~13.5A 0~8.5A 0~7A 0~4.5A 0~2.9A 0~2.2A
Output Voltage 3.3 5 7.5 12 15 24 36 48
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment 3.1 ~ 3.8V 4.75 ~ 5.8V 7.1 ~ 9V 11.4 ~ 13.8V 14.25 ~ 18V 22.8 ~ 28.8V 34.2 ~ 39.6V 45.6 ~ 55.2V
Dimensions 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38 159 x 97 x 38
Working Temperature -40-+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000- 4-2,3,4,5,6,8,11, EN61000-6-2 heavy industry level
