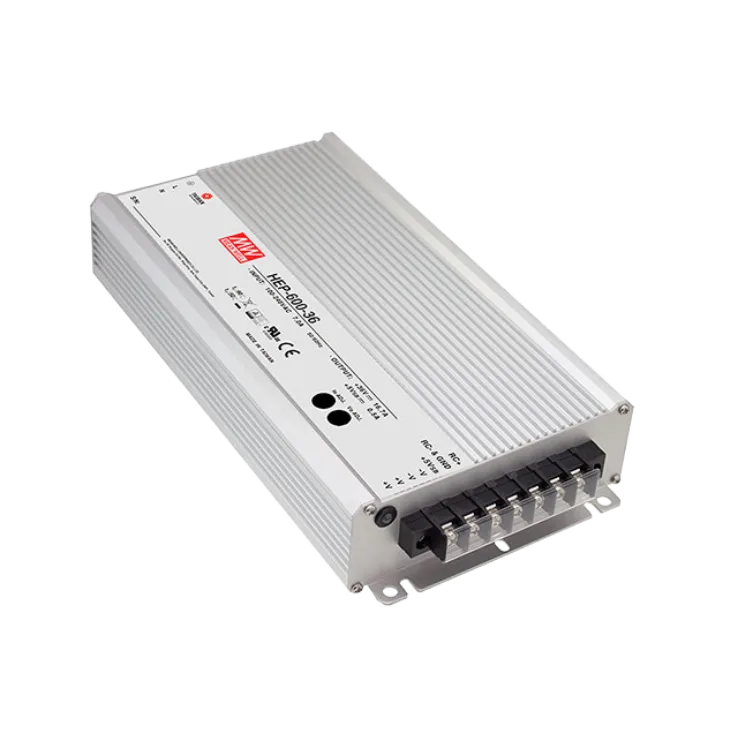

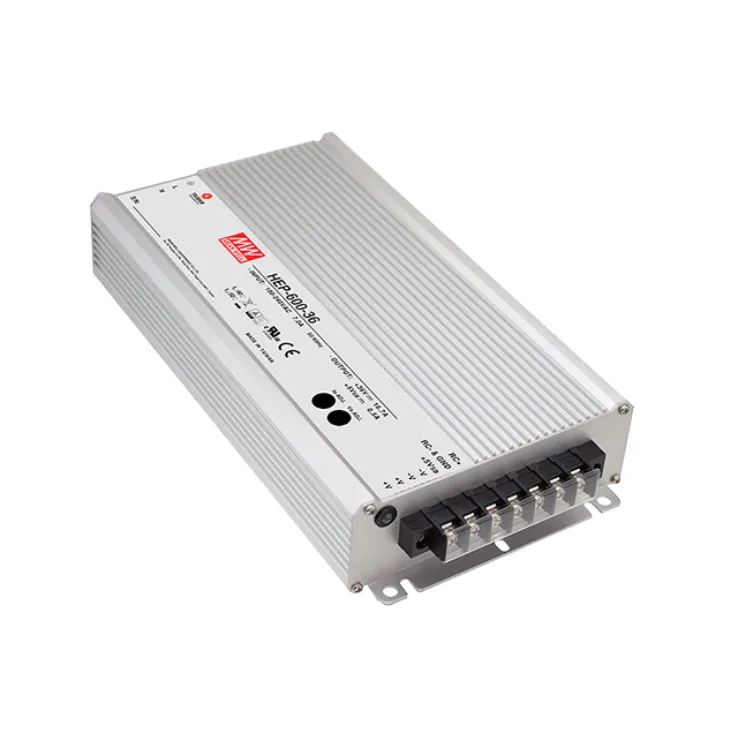

HEP-600 Series Enclosed Power Supplies 480–604.8W

Models:	HEP-600-12 HEP-600-15 HEP-600-20 HEP-600-24 HEP-600-30 HEP-600-36 HEP-600-42 HEP-600-48 HEP-600-54
Manufacturer:	MEAN WELL
Type:	Enclosed Power Supplies

HEP-600 Series Features:

Withstand 10G vibration test

Fanless design, cooling by free air convection

Protections: Short circuit / Over current / Over voltage/Over temperature

Other features:

Spec	HEP-600-12	HEP-600-15	HEP-600-20	HEP-600-24	HEP-600-30	HEP-600-36	HEP-600-42	HEP-600-48	HEP-600-54
Wattage	480	540	560	600	600	601.2	600.6	600	604.8
Input Voltage	90-264VAC	90-264VAC	90-264VAC	90-264VAC	90-264VAC	90-264VAC	90-264VAC	90-264VAC	90-264VAC
Output Current	40A	36A	28A	25A	20A	16.7A	14.3A	12.5A	11.2A
Output Voltage	12	15	20	24	30	36	42	48	54
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	10.2-12.6V	12.7-15.8V	17-21V	20.4-25.2V	25.5-31.5V	30.6-37.8V	35.7-44.1V	40.8-50.4V	45.9-56.7V
Dimensions	280x 144x 48	280x 144x 48	280x 144x 48	280x 144x 48	280x 144x 48	280x 144x 48	280x 144x 48	280x 144x 48	280x 144x 48
Working Temperature	-40~+70°C
Safety Standards	UL60950-1, TUV EN60950-1 approved
EMC Standards	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A
