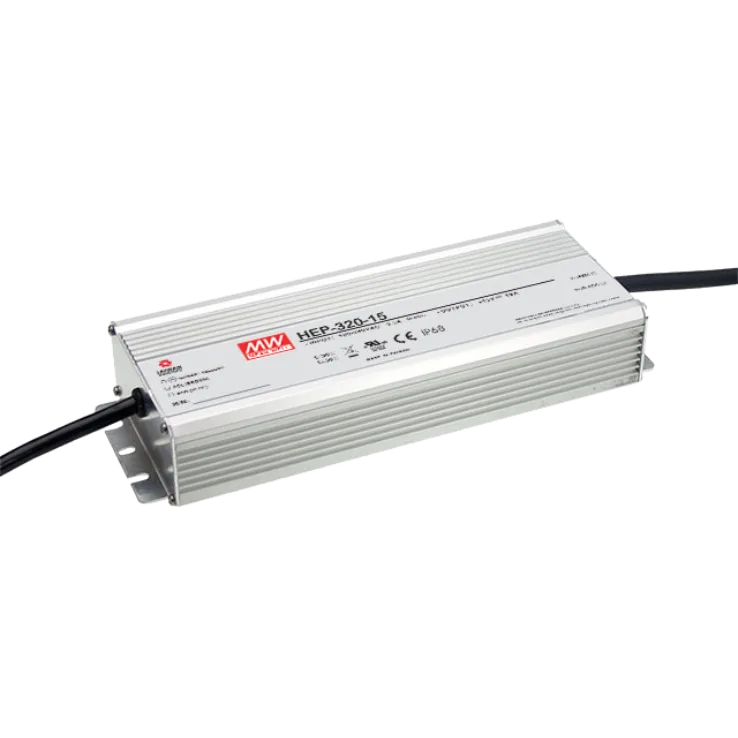

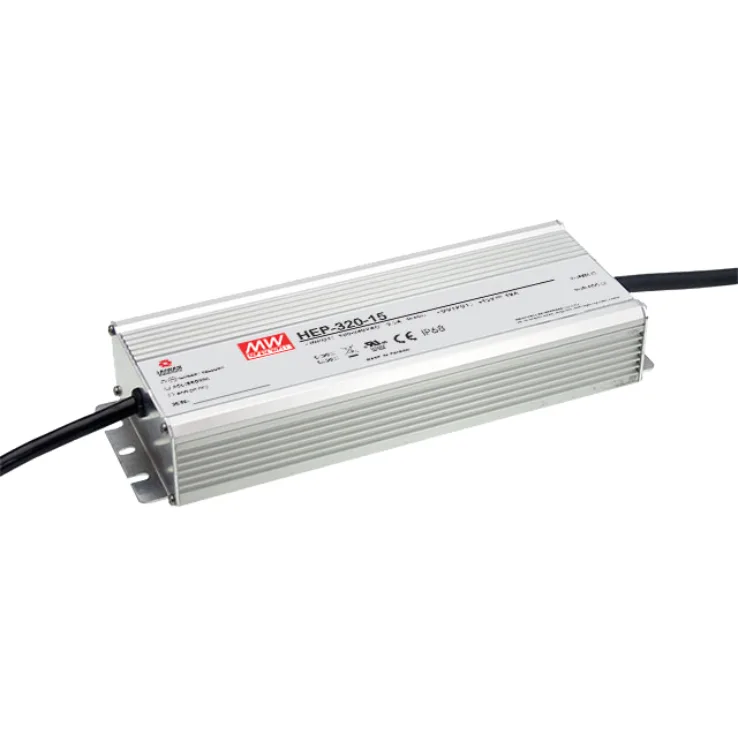

HEP-320 Series Enclosed Power Supplies 264–321W

HEP-320 Series Features:

Withstand 10G vibration test

Fanless design, cooling by free air convection

Protections: Short circuit / Over current / Over voltage

Other features:

Spec	HEP-320-12	HEP-320-15	HEP-320-24	HEP-320-36	HEP-320-48	HEP-320-54
Wattage	264	285	320	320	321	321
Input Voltage	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC	90~305VAC, 127~431VDC
Output Current	22	19	13.34	8.9	6.7	5.95
Output Voltage	12	15	24	36	48	54
Output Voltage Options	Single	Single	Single	Single	Single	Single
DC output adjustment	+/-6% rated output voltage	+/-6% rated output voltage	+/-6% rated output voltage	+/-6% rated output voltage	+/-6% rated output voltage	+/-6% rated output voltage
Working Temperature	-55~+70°C (Refer to "Derating Curve")
Safety Standards	UL60950-1, IP65 (or IP68 for HEP-320 Blank-Type) approved ; design refer to TUV EN60950-1
EMC Standards	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 6KV), criteria A
