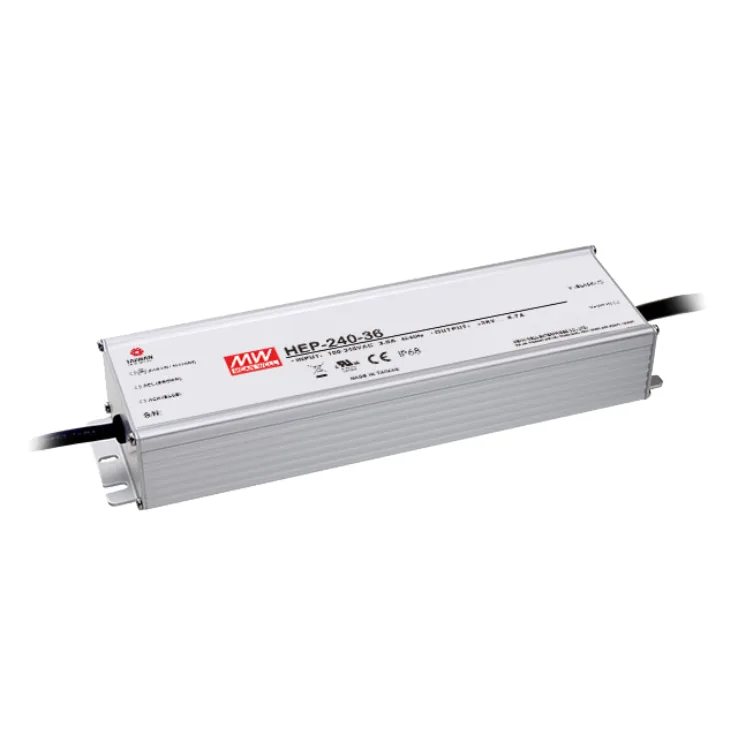

HEP-240 Series Enclosed Power Supplies 192–241.2W

Download Datasheet
Models:
  • HEP-240-12
  • HEP-240-15
  • HEP-240-24
  • HEP-240-36
  • HEP-240-48
  • HEP-240-54
Manufacturer: Mean Well
Type: Enclosed Power Supplies

HEP-240 Series Features:

HEP-240 is a 240W industrial AC/DC power supply featuring the outstanding capability to operate under a harsh environment with high dust density, humidity, vibration and altitude.

Features:

  • Universal AC input/Full range (up to 305VAC)
  • Built-in active PFC function
  • High efficiency up to 93.5%
  • Fanless design, cooling by free air convection
  • -55~+70°C wide operating range
  • Aluminium case and filling with heat-conducted silicone
  • IP65 design, optional IP68 rated model available
  • Meet 6KV surge immunity level
  • Withstand 10G vibration test
  • Operating altitude up to 5000 meters (Note.8)
  • Protections: short circuit/ overload/ over voltage/ over temperature
  • 6 years warranty (Note.10)
Wattage 192 225 240 241.2 240 240.3
Input Voltage 85~264VAC 85~264VAC 85~264VAC 85~264VAC 85~264VAC 85~264VAC
Output Current 16A 15A 10A 6.7A 5A 4.45A
Output Voltage 12V 15V 24V 36V 48V 54V
Dimensions 244.2*68*38.8mm 244.2*68*38.8mm 244.2*68*38.8mm 244.2*68*38.8mm 244.2*68*38.8mm 244.2*68*38.8mm
Working Temperature -55~+70°C
Safety Standards UL62368-1, IEC/EN62368-1, IP65 (or IP68 for HEP-240 Blank-Type), EAC TP TC 004 approved
EMC Standards Compliance to EN55032 (CISPR32) Class B, EN61000-3-2, -3, EAC TP TC 020
