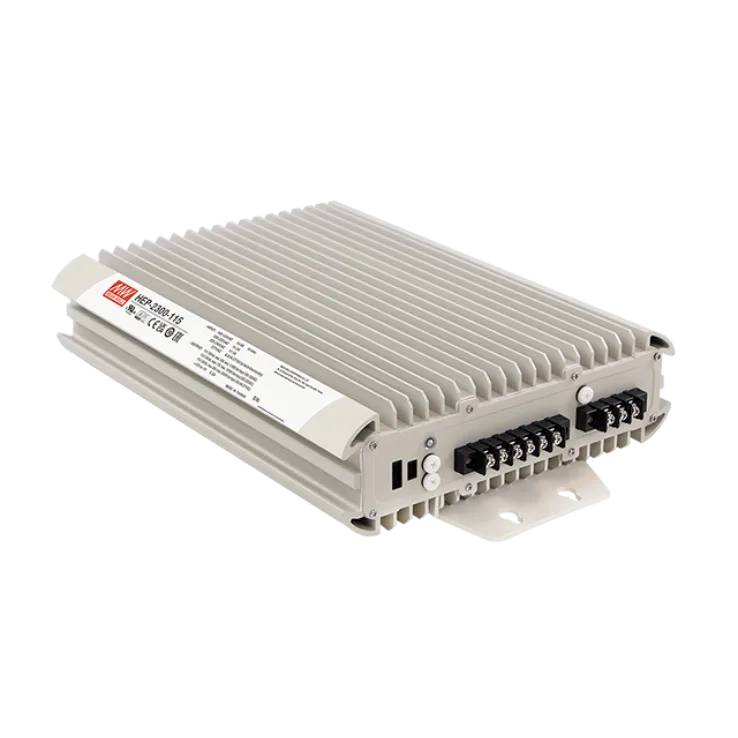

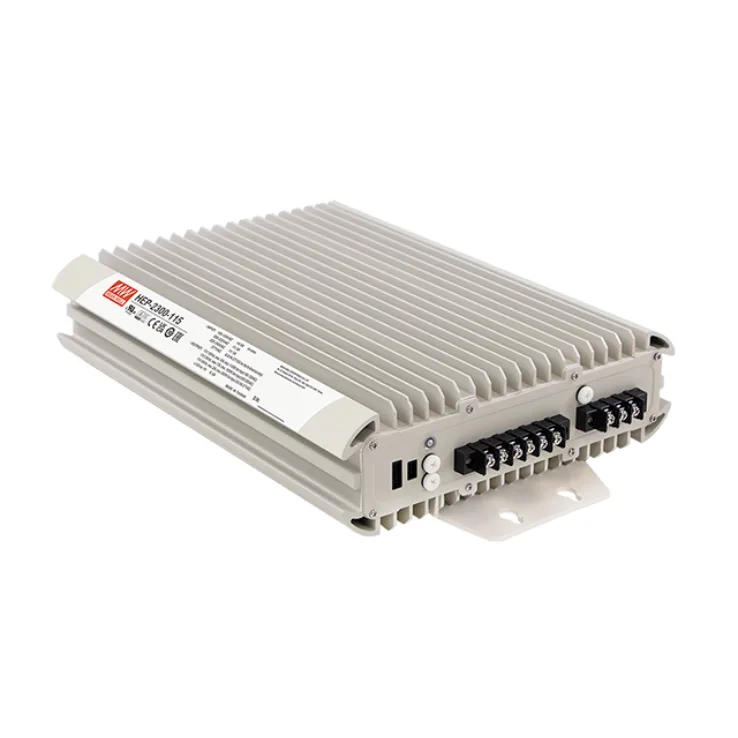

HEP-2300 Series Enclosed Power Supplies

Download Datasheet
Models:
  • HEP-2300-55
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

HEP-2300 Series Features:

HEP-2300 is a 2300W industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environment.

Features:

  • High efficiency up to 95.5% and active PFC function
  • Fanless design, cooling by free air convection
  • Aluminum case and filling with hear-conducted glue
  • Withstand 10G vibration test
  • -40~70°C wide operating range
  • Charger function for lead-acid batteries and Li-on batteries
  • Built-in default 2/3 stage charging curves and programmable curve
  • Built-in CANBus and PMBus/MODBus by optional
  • Output voltage and constant current level programmable
  • Protections: short circuit/overload/over voltage/over temperature
  • Built-in remote ON-OFF control and DC OK active signal
  • Harness connector type with AC fail and T-Alarm signal
  • LED indicator for power on
  • Diverse installation scenarios-Mounting methods
  • Wiring and Harness connector type with IP67 rating
  • 6 years warranty
Working Temperature -40~70°C
Safety Standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved: design refers to BSEN/EN61558-1, BS EN/EN60335-1 (by requies)
EMC Standards BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-6-2, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11
