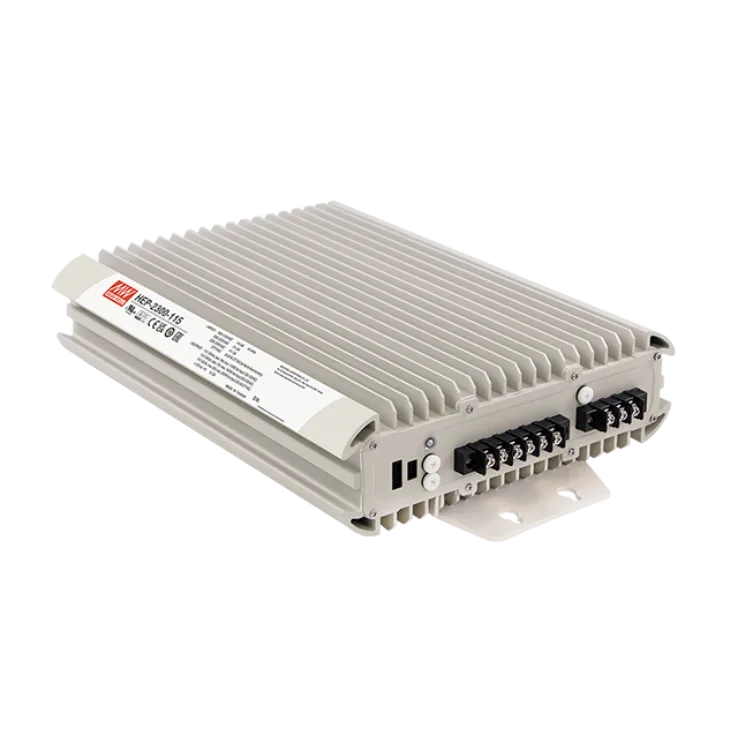

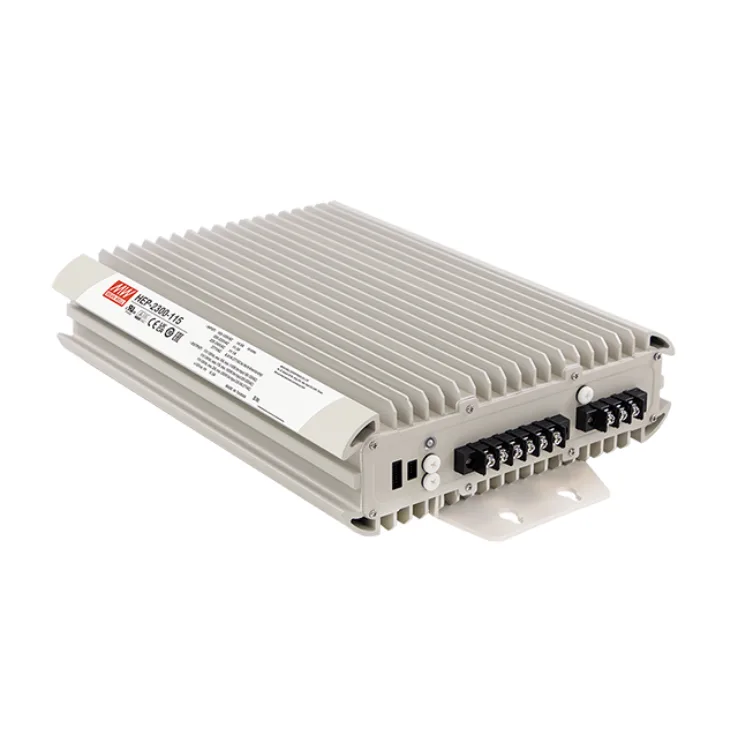

HEP-2300-HV Series Enclosed Power Supplies 2300W

Download Datasheet
Models:
  • HEP-2300-115
  • HEP-2300-230
  • HEP-2300-380
Manufacturer: MEAN WELL
Type: Enclosed Power Supplies

HEP-2300-HV Series Features:

HEP-2300 IS A 2300w industrial AC/DC power supply featuring the outstanding capability tp operate under highly humid, dusty, oily and high-vibration harsh environment.

Features:

  • High voltage output (115/230/380VDC)
  • High efficiency up yo 95.5% and active PFC function
  • Fanless design, cooling by free air convection
  • Aluminum case and filling with heat-conducted glue
  • Withstand 10G vibration
  • -40~70°C wide operating temperature
  • Built-in CANBus protocol/Optional PMBus protocol
  • Output voltage and constant current level programmable
  • Protections: short circuit/ overload/ over voltage/ over temperature

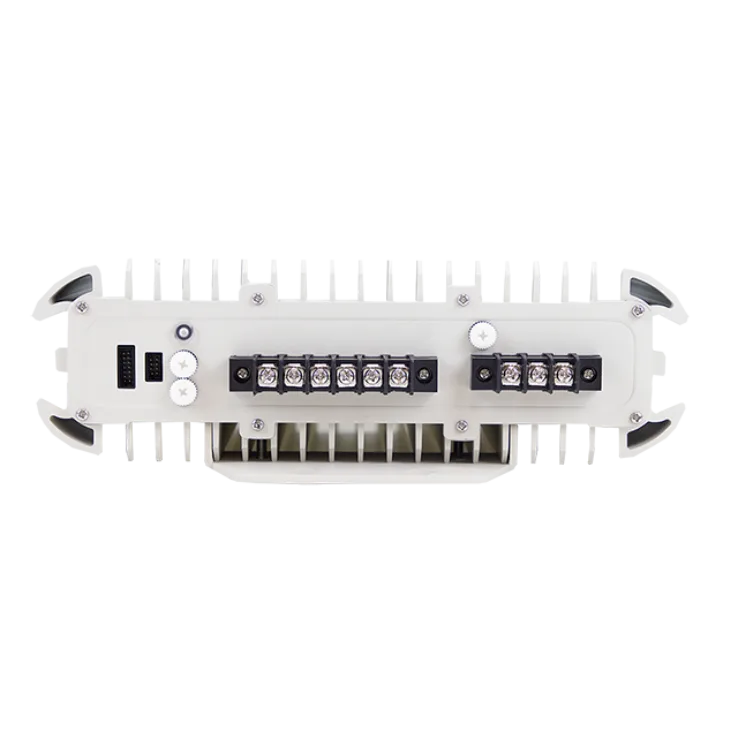

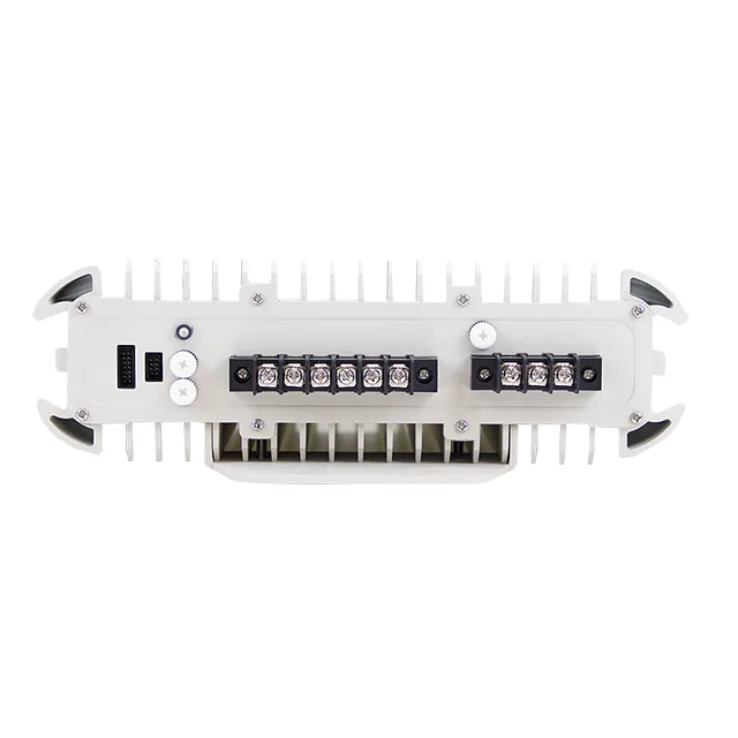

  • Built-in remote ON-OFF control and DC OK active signal
  • LED indicator for power on
  • Diverse installation scenarios-mounting methods

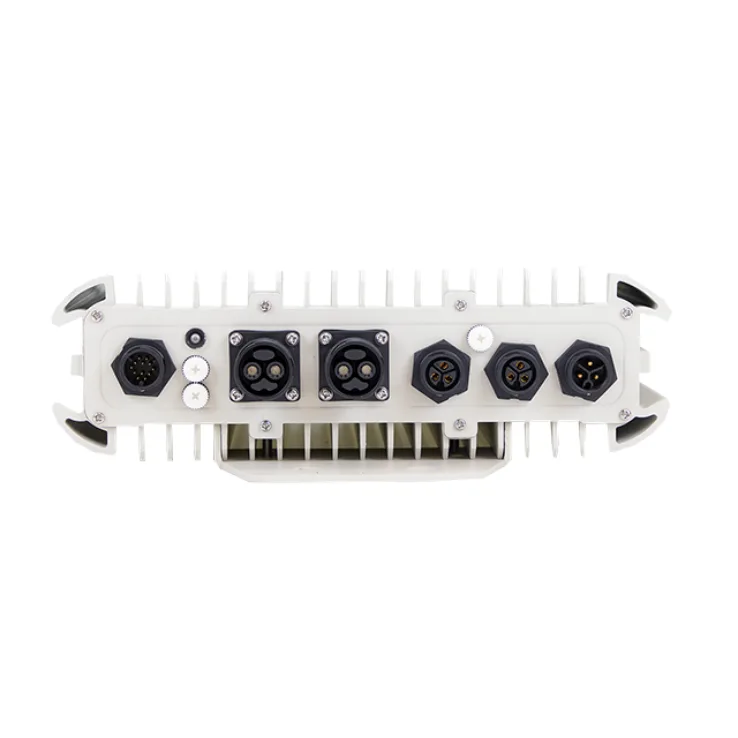

  • Wiring type with IP67 rating
  • 6 years warranty
Wattage 2300 2300 2300
Input Voltage 90~305VAC 90~305VAC 90~305VAC
Output Current 20 10 6.9
Output Voltage 115 230 380
Dimensions 375x280x88mm 375x280x88mm 375x280x88mm
Working Temperature -40~70°C
Safety Standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved; design refers to BS EN/EN61558-1, BS EN/EN60335-1(by request)
EMC Standards BS EN/EN55032(CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-3-3
